Laser Welding1500W

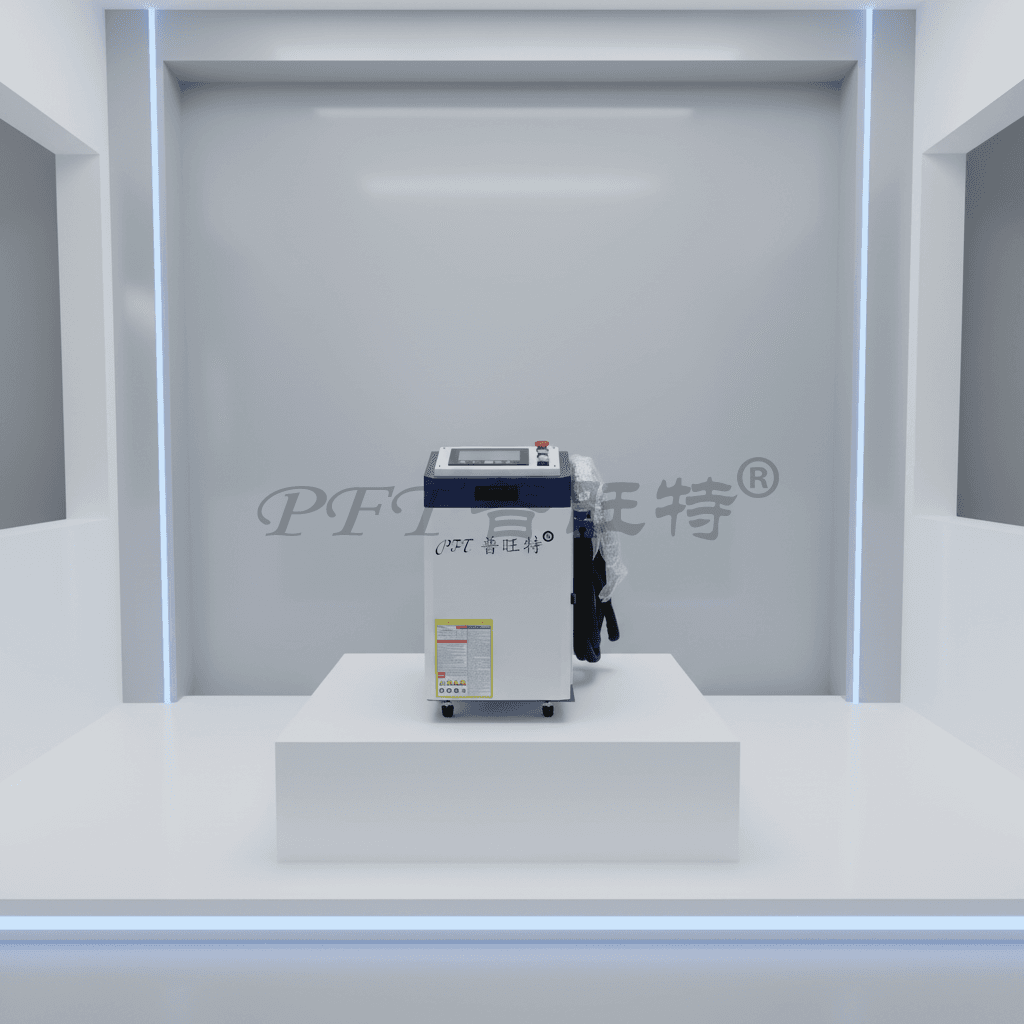

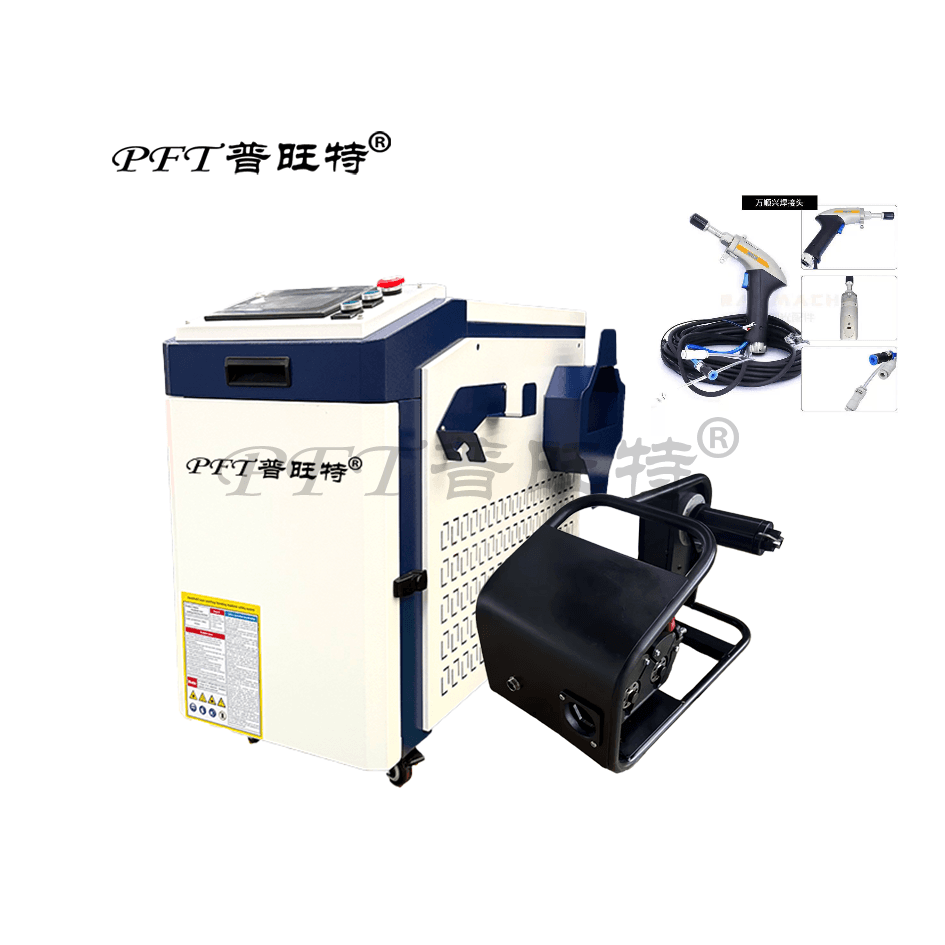

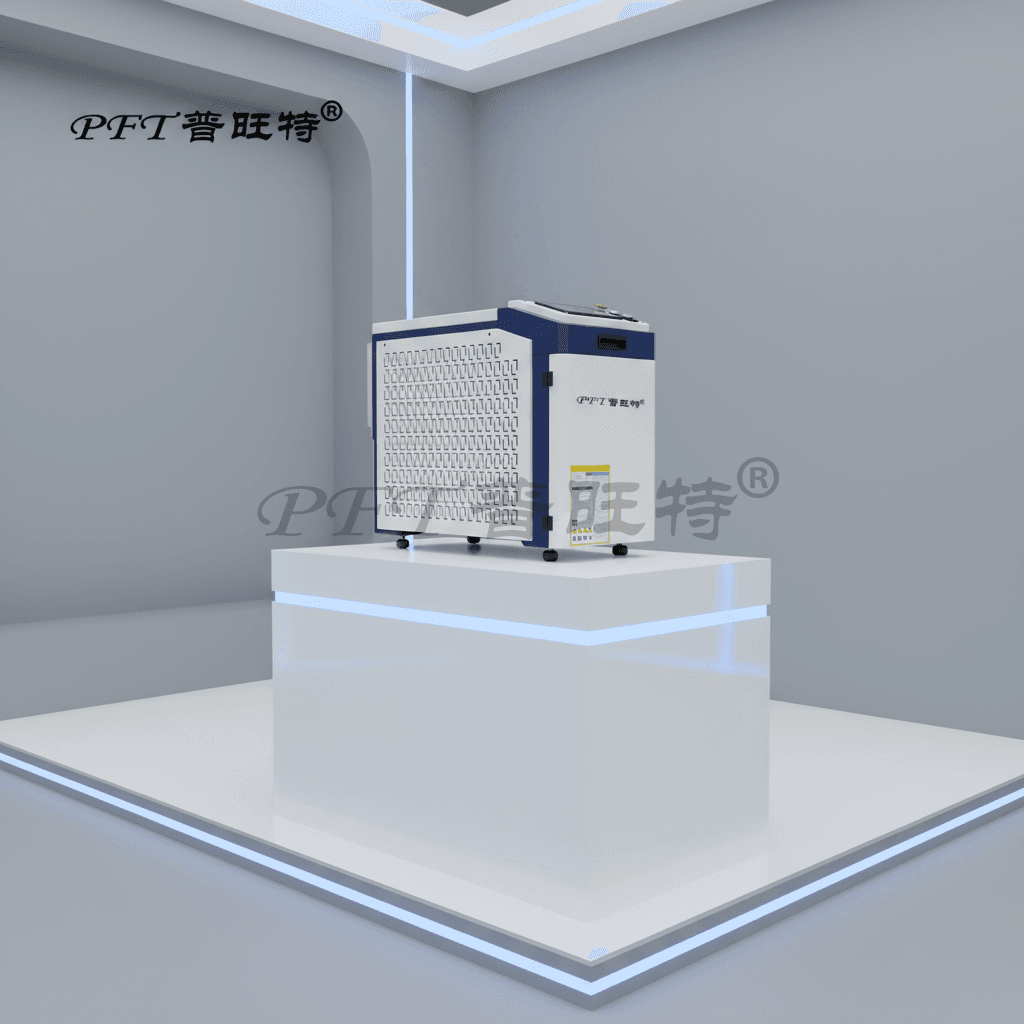

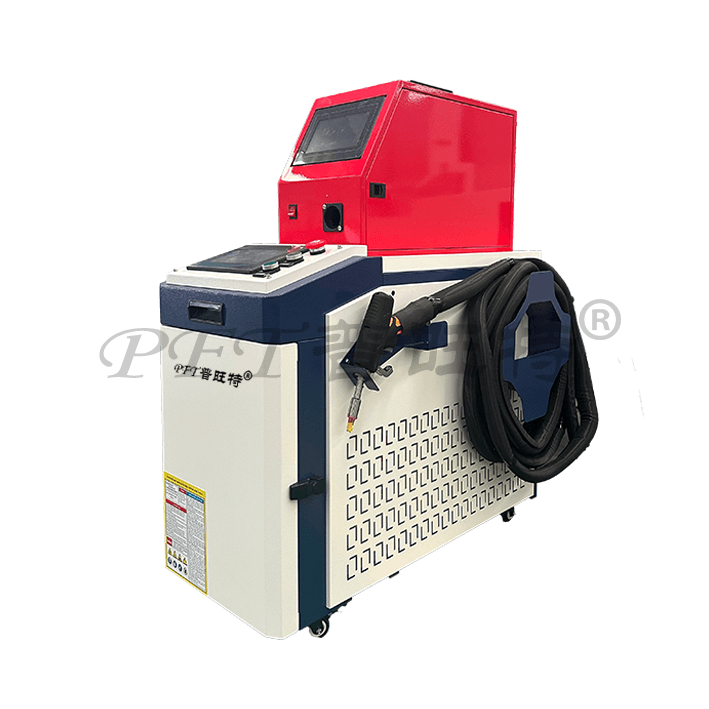

PFT-1500W 3-in-1 Handheld Fiber Laser Welding Machine
New generation handheld fiber laser welding machine with 3 functions: welding, cutting and cleaning. Compact, easy to operate, high efficiency.
Working Area
Handheld
Positioning Accuracy
±0.05mm
Supported Materials
Core Components
Key Features
⚡
01Raycus / MAX Laser Source
Continuous fiber laser from top brands, maintenance-free, with a long lifespan exceeding 100,000 hours.
🎛️
02SK / SUP Control System
Equipped with a smart LCD screen supporting 20+ languages like English, Spanish, Russian, Portuguese.
Technical Data
Technical Specifications
ParameterValue
Model | PFT-1500W 3-in-1 |
Laser Power | 1500W |
Laser Wavelength | 1080nm |
Fiber Cable Length |
Core Process Parameters
Processing Capability Chart
| Material Type | 1500W | 2000W | 3000W |
|---|---|---|---|
| Stainless Steel | 3.0 mm | 4.0 mm | 6.0 mm |
| Carbon Steel | 3.0 mm | 4.0 mm | 7.0 mm |
| Aluminum | 2.0 mm | 3.0 mm | 5.0 mm |
| Brass | 1.5 mm | 2.0 mm | 3.0 mm |
Industry Use Cases
Applications
01Kitchen Cabinets02Stainless Steel Doors03Elevator Panels04Automotive Parts05Electrical Enclosures
FAQ
Product FAQ
Q01What is the TIG welding comparison?▼
A01
Laser welding is 2-4 times faster than traditional TIG welding, saving up to 80% labor cost.
Q02Can it clean rust and cut metals?▼
A02
Yes, switching nozzles and modes enables rust cleaning and thin metal plate cutting.
Also Consider
Related Products
Get a Quote
Interested in PFT-1500W 3-in-1 Handheld Fiber Laser Welding Machine?
Get a custom quote tailored to your specific requirements, or speak directly with our application engineers.
