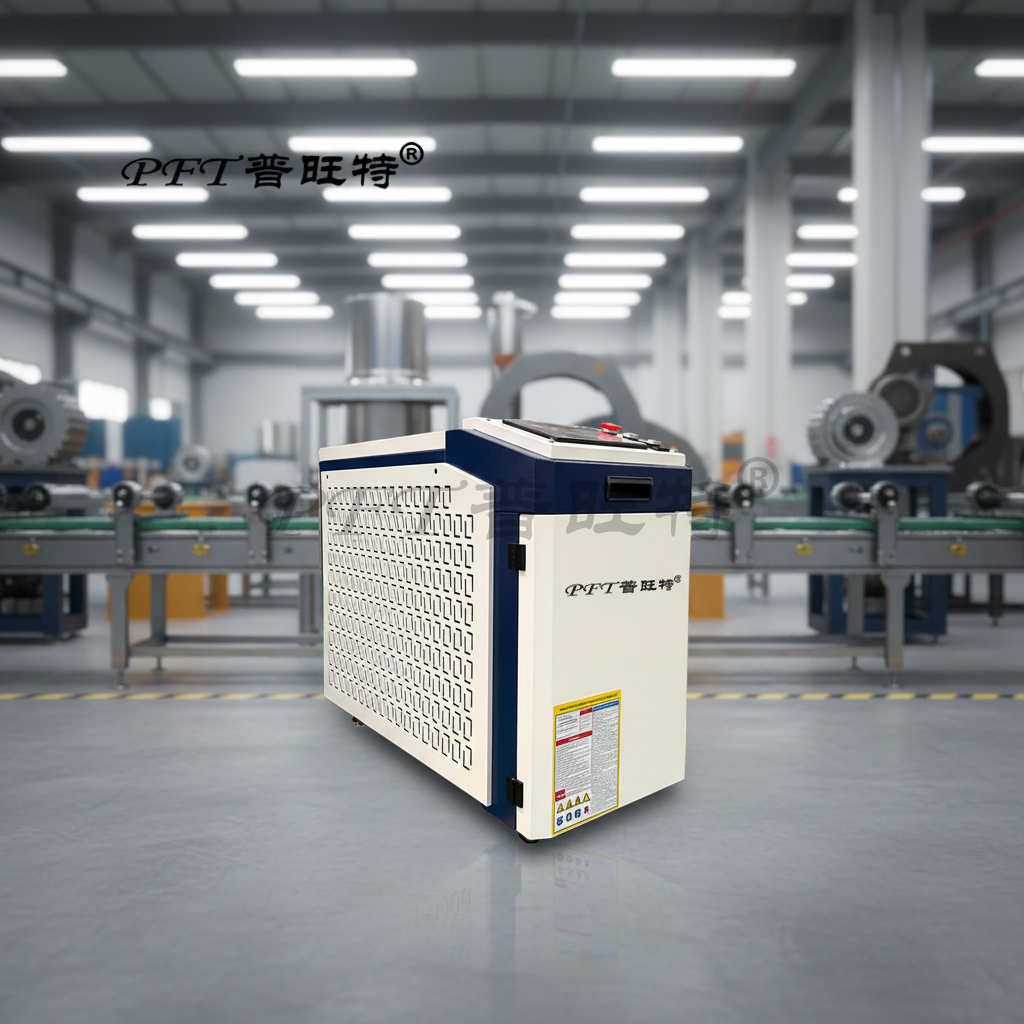

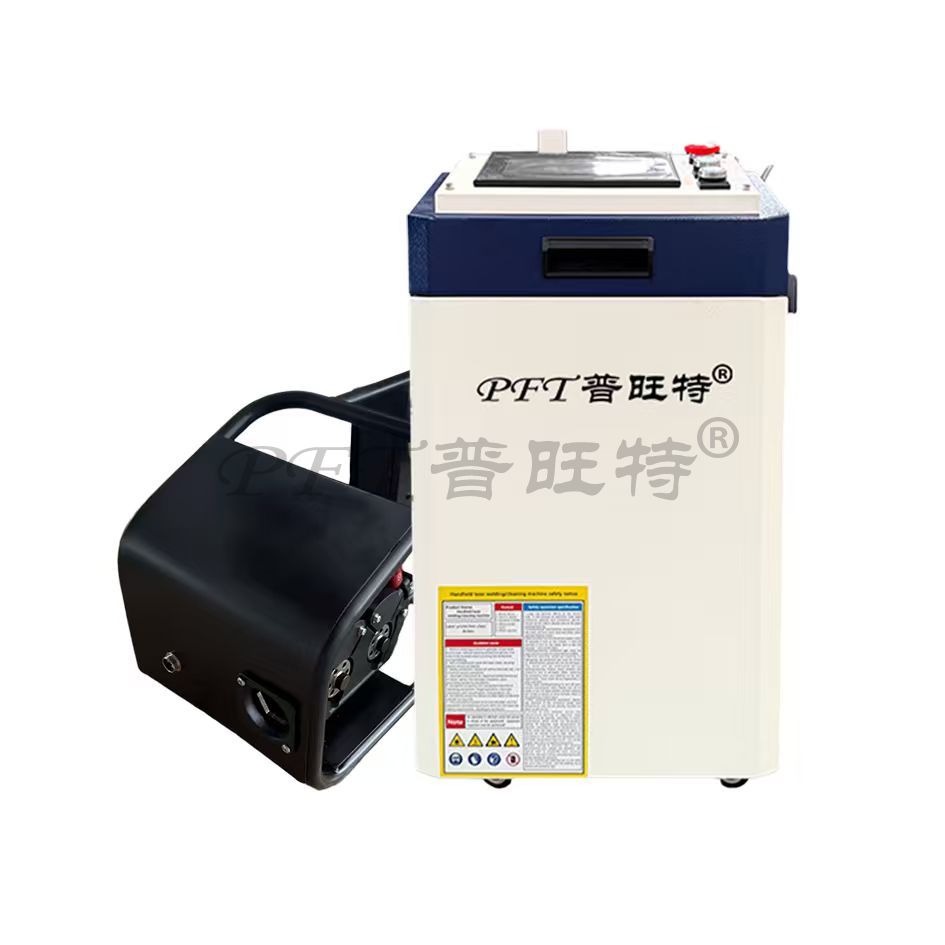

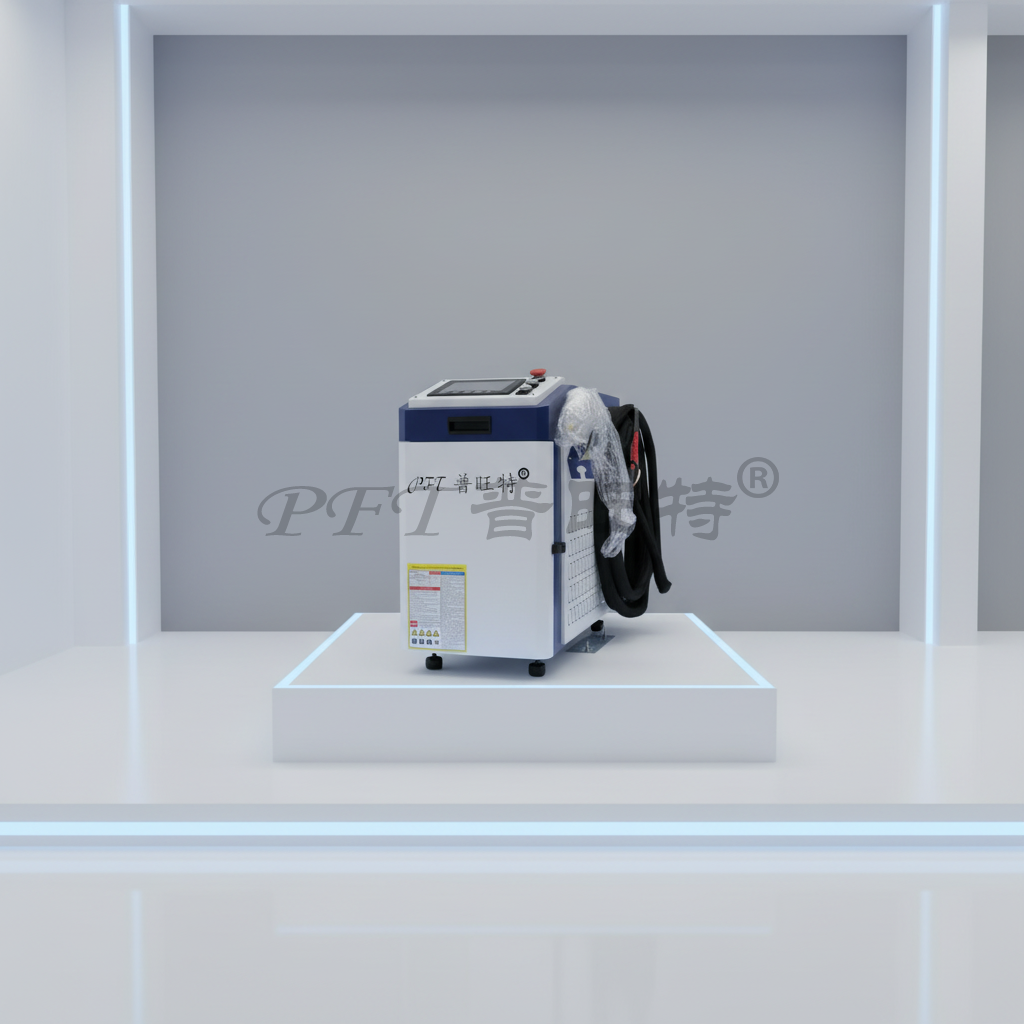

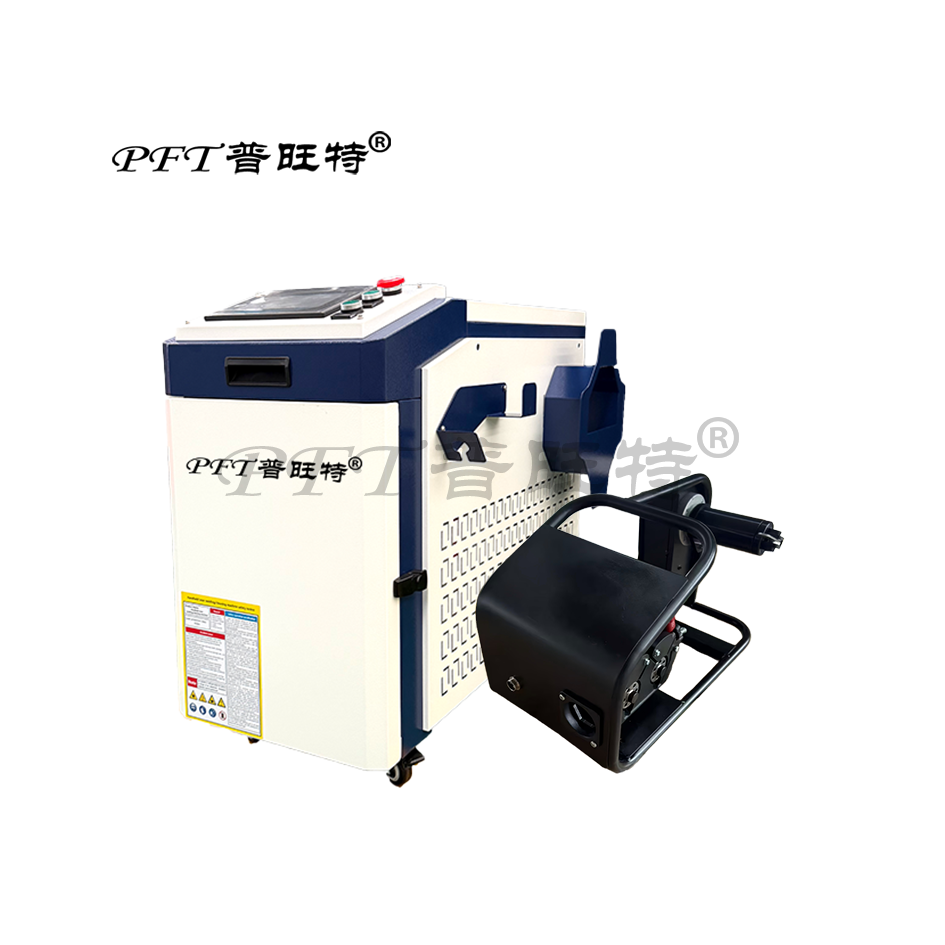

High-power 2000W handheld fiber laser welding machine for thicker materials. Fast speed, TIG/MIG alternative.
Working Area
Handheld
Positioning Accuracy
±0.05mm
Supported Materials
Core Components
Stronger fiber laser source providing stable beam output, easily processing medium thickness steel plates.
Supports single/double swing modes, widening the weld seam up to 5mm to compensate for workpiece gaps.
Technical Data
Core Process Parameters
| Material Type | 1500W | 2000W | 3000W |
|---|---|---|---|
| Stainless Steel | 3.0 mm | 4.0 mm | 6.0 mm |
| Carbon Steel | 3.0 mm | 4.0 mm | 7.0 mm |
| Aluminum | 2.0 mm | 3.0 mm | 5.0 mm |
| Brass | 1.5 mm | 2.0 mm | 3.0 mm |
Industry Use Cases
Buyer information
Confirm the machine against the actual industries, part geometry, material, and production volume.
Current lead time is confirmed after power, cooling, wire-feeding options, quantity, and shipping destination are reviewed.
Confirm delivery with an engineer →Available quality and compliance documents can be confirmed with the quotation and linked company documentation.
View company certificates →Global Logistics
Every machine is reinforced with industrial-grade wooden crating, moisture-proof film wrapping, and shock-absorbing foam. We partner with experienced freight forwarders for FCL and LCL sea freight, air freight, and door-to-door delivery worldwide.
FAQ
For stainless steel and carbon steel, it supports up to 4.0mm weld penetration. Aluminum up to 3.5mm.
