What applications is Enclosed Exchange Platform Fiber Laser Cutting Machines suitable for?

Enclosed Exchange Platform Fiber Laser Cutting Machines is suitable for Automotive Manufacturing, Aerospace, Electrical Equipment, Metal Fabrication. PFT can recommend a configuration based on material, thickness, and production capacity.

Can this product be customized?

Yes. PFT can customize working area, power, automation configuration, fixtures, and delivery requirements.

Can I get technical selection advice before purchase?

Yes. Provide material, thickness, sample photos, and target capacity, and the engineering team will recommend a suitable solution.

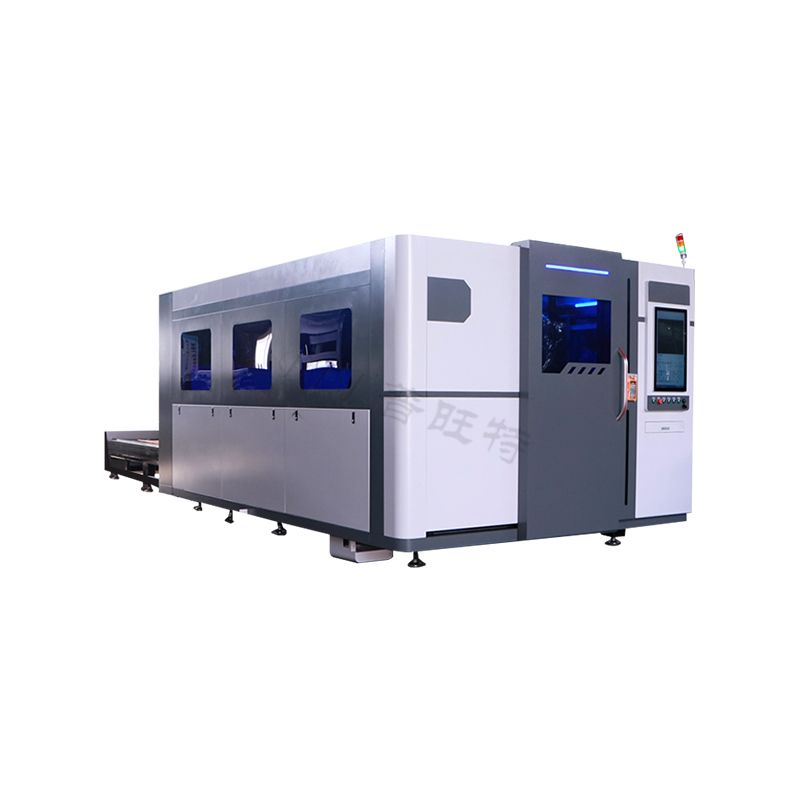

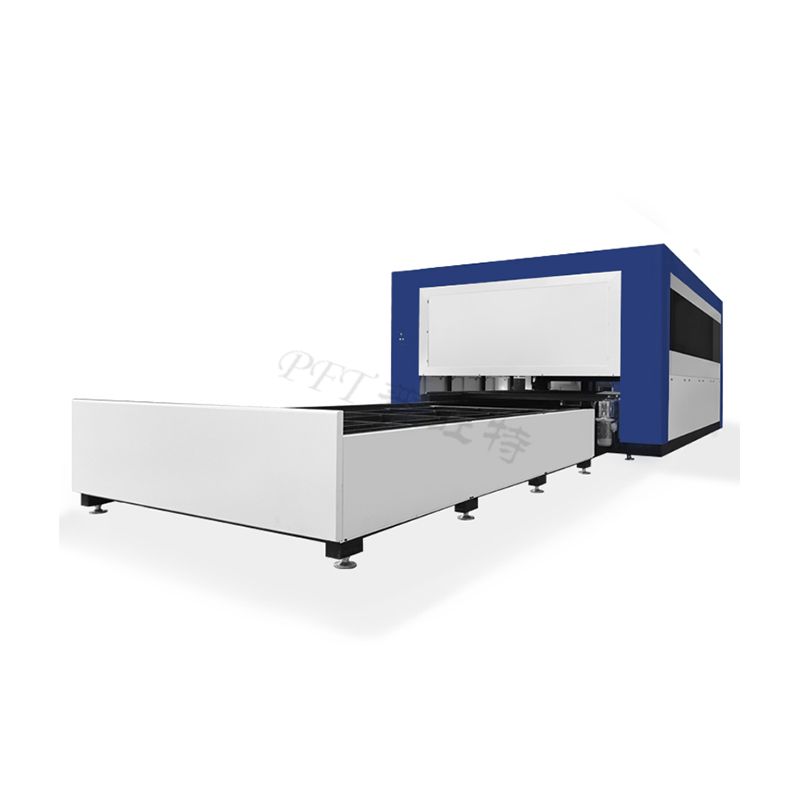

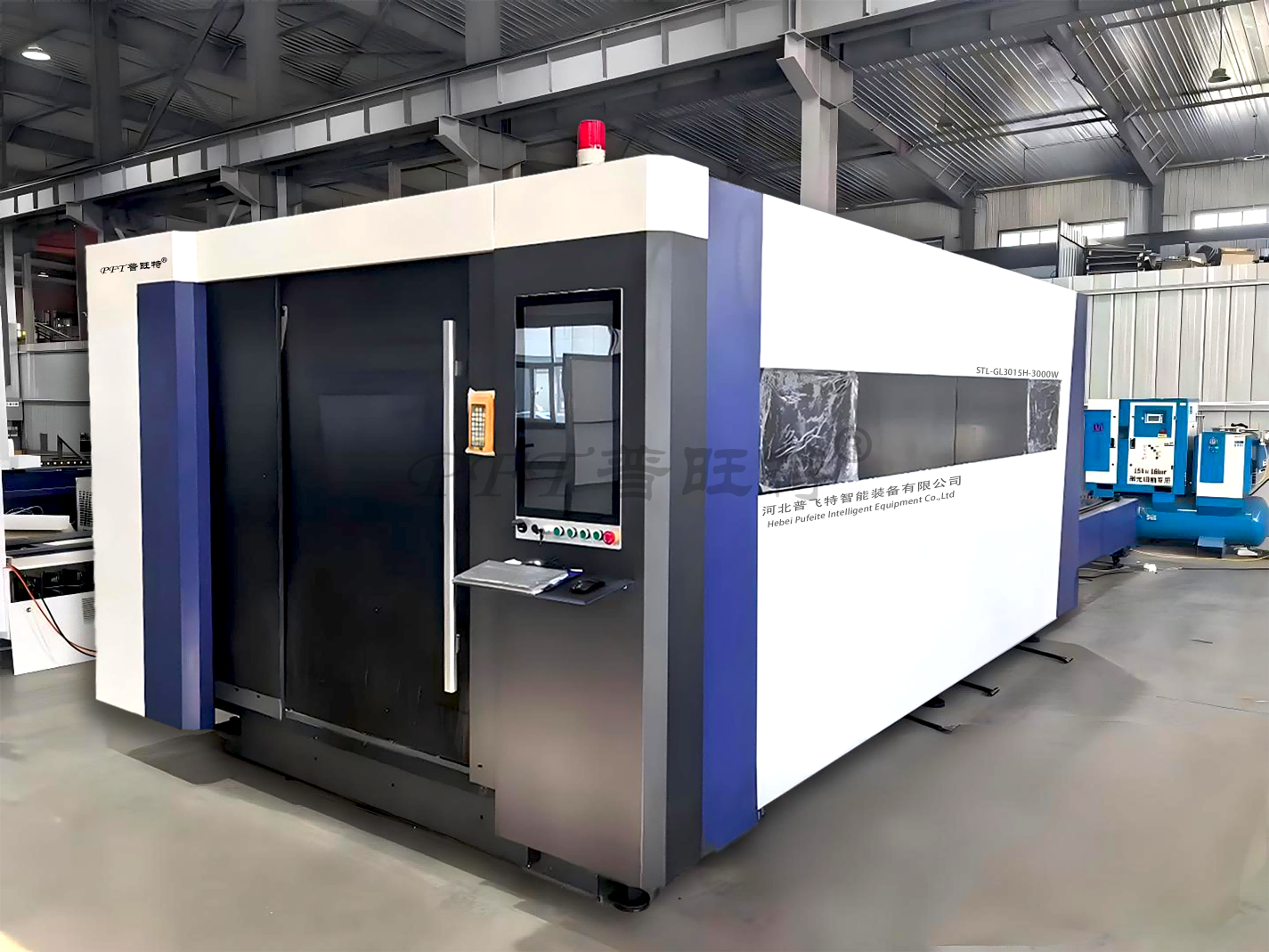

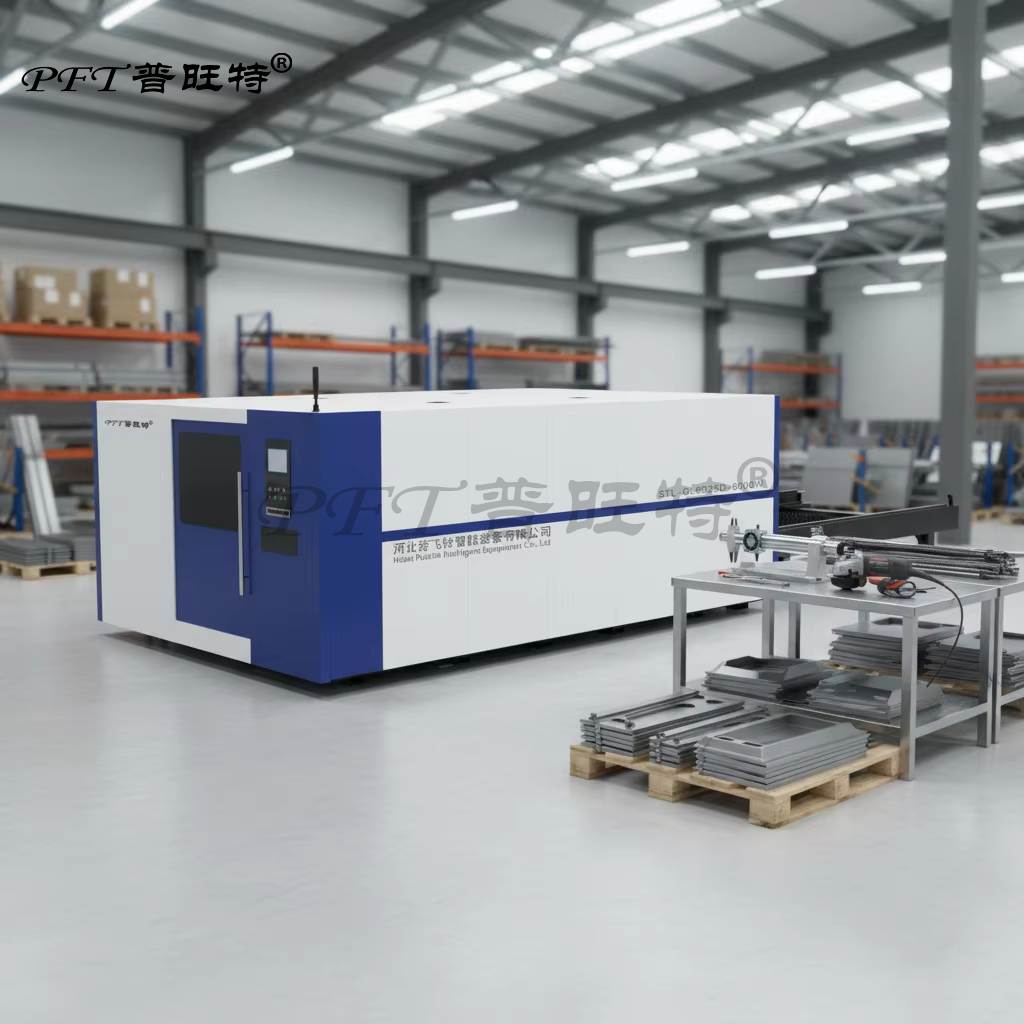

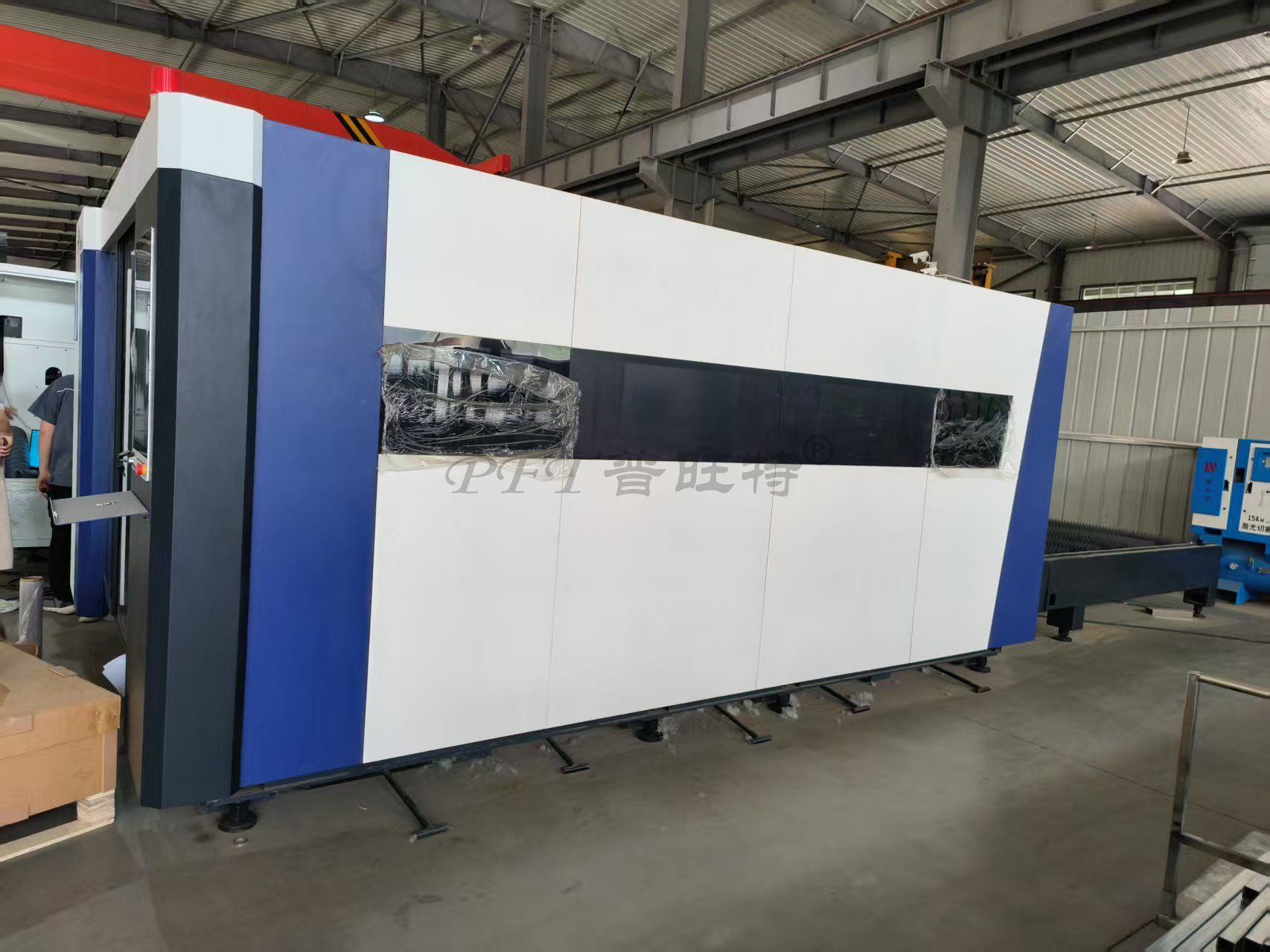

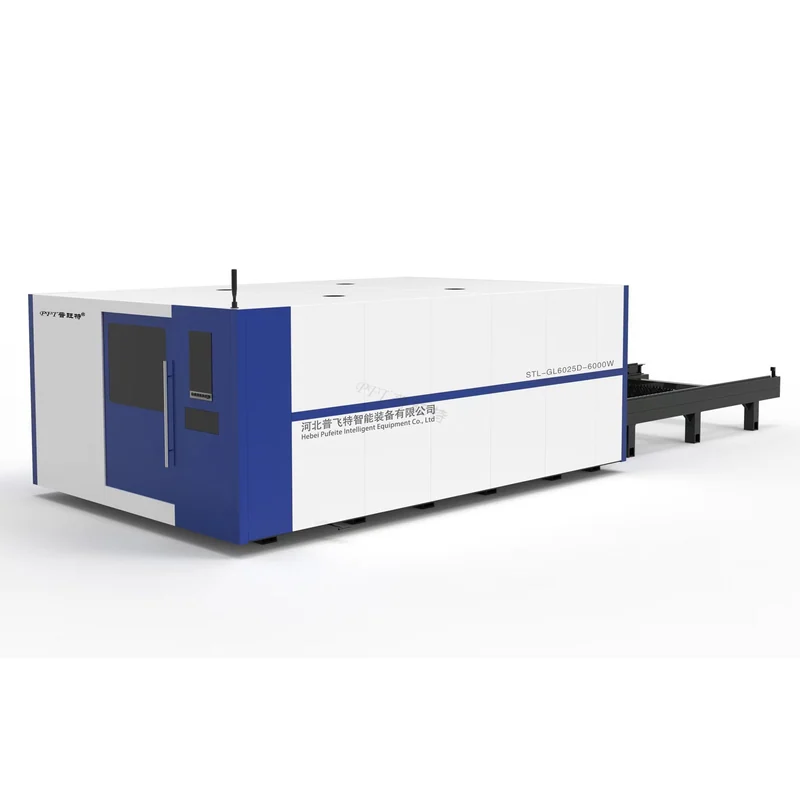

PFT Enclosed Exchange Platform Laser Cutting Machines

Name: Enclosed Exchange Platform Fiber Laser Cutting Machines
Brand: PFT Laser

PFT Laser

Get a Quote

Initializing...

PFT Enclosed Exchange Platform Laser Cutting Machines | PFT Laser

Technical Data

Technical Specifications

ParameterValue

Model

PFT-3015H /PFT-4015H/PFT-6025H

Working area

3000mm*1500mm 4000mm*1500mm 6000mm*2500mm / Reposition accuracy / ±0.03mm/1000mm

Model

PFT-3015H /PFT-4015H/PFT-6025H

Working area

3000mm*1500mm 4000mm*1500mm 6000mm*2500mm / Reposition accuracy / ±0.03mm/1000mm

Laser type

Fiber laser generator / Graphic format supported / CAD. DXF (etc)

Laser power

3kw/6kw/12kw/20kw/30kw/60kw / Working environment / Temp:0-40℃,humidity:≤80%, No condensation

Laser type

Fiber laser generator / Graphic format supported / CAD. DXF (etc)

Laser power

3kw/6kw/12kw/20kw/30kw/60kw / Working environment / Temp:0-40℃,humidity:≤80%, No condensation

Transmission system

Gantry double-drive structure / Voltage / 220V/380V/ 50HZ/60HZ

Lubrication system

Full-automatic / Overall dimension / 7500mm*3280mm*2150mm

Transmission system

Gantry double-drive structure / Voltage / 220V/380V/ 50HZ/60HZ

Lubrication system

Full-automatic / Overall dimension / 7500mm*3280mm*2150mm

Maximum speed

120m/min / Gross weight / 2800kg

Maximum accelerated speed

1.2G / Position accuracy / ±0.02mm/1000mm

Maximum speed

120m/min / Gross weight / 2800kg

Maximum accelerated speed

1.2G / Position accuracy / ±0.02mm/1000mm

NO.

Model / Name / Quantity / Remarks

PFT-3015H/6025H / Fiber laser cutting machine / 1 set / PFT

NO.

Model / Name / Quantity / Remarks

PFT-3015H/6025H / Fiber laser cutting machine / 1 set / PFT

Laser source / 3KW/6KW/12KW/20kw/30KW/60kw / 1 set / RAYCUS/MAX

Water chiller / Special water chiller for fiber laser generator / 1 set / Hanli/S&A

Laser source / 3KW/6KW/12KW/20kw/30KW/60kw / 1 set / RAYCUS/MAX

Water chiller / Special water chiller for fiber laser generator / 1 set / Hanli/S&A

Laser head / High accuracy professional fiber laser head / 1 set / BLT/Raytools

Control system / FSCUT/NCStudio/Raytools / 1 set / Cypcut/Weihong

Laser head / High accuracy professional fiber laser head / 1 set / BLT/Raytools

Control system / FSCUT/NCStudio/Raytools / 1 set / Cypcut/Weihong

Servo motor / High speed servo motor / 6 sets / DELTA

Reducer / French Motoreducer / 5 sets / French Motoreducer

Servo motor / High speed servo motor / 6 sets / DELTA

Reducer / French Motoreducer / 5 sets / French Motoreducer

Electric components / Famous / 1 set / Shneider/omron

Guide rail / Famous / 1 set / HIWIN

Electric components / Famous / 1 set / Shneider/omron

Guide rail / Famous / 1 set / HIWIN

Rack / Famous / 1 set / YYC

Proportional valve / Famous / 1set / SMC

Rack / Famous / 1 set / YYC

Proportional valve / Famous / 1set / SMC

voltage stabilizer / Standard / 1set / Standard

Computer / Industrial computer / 1set / Standard

voltage stabilizer / Standard / 1set / Standard

Computer / Industrial computer / 1set / Standard

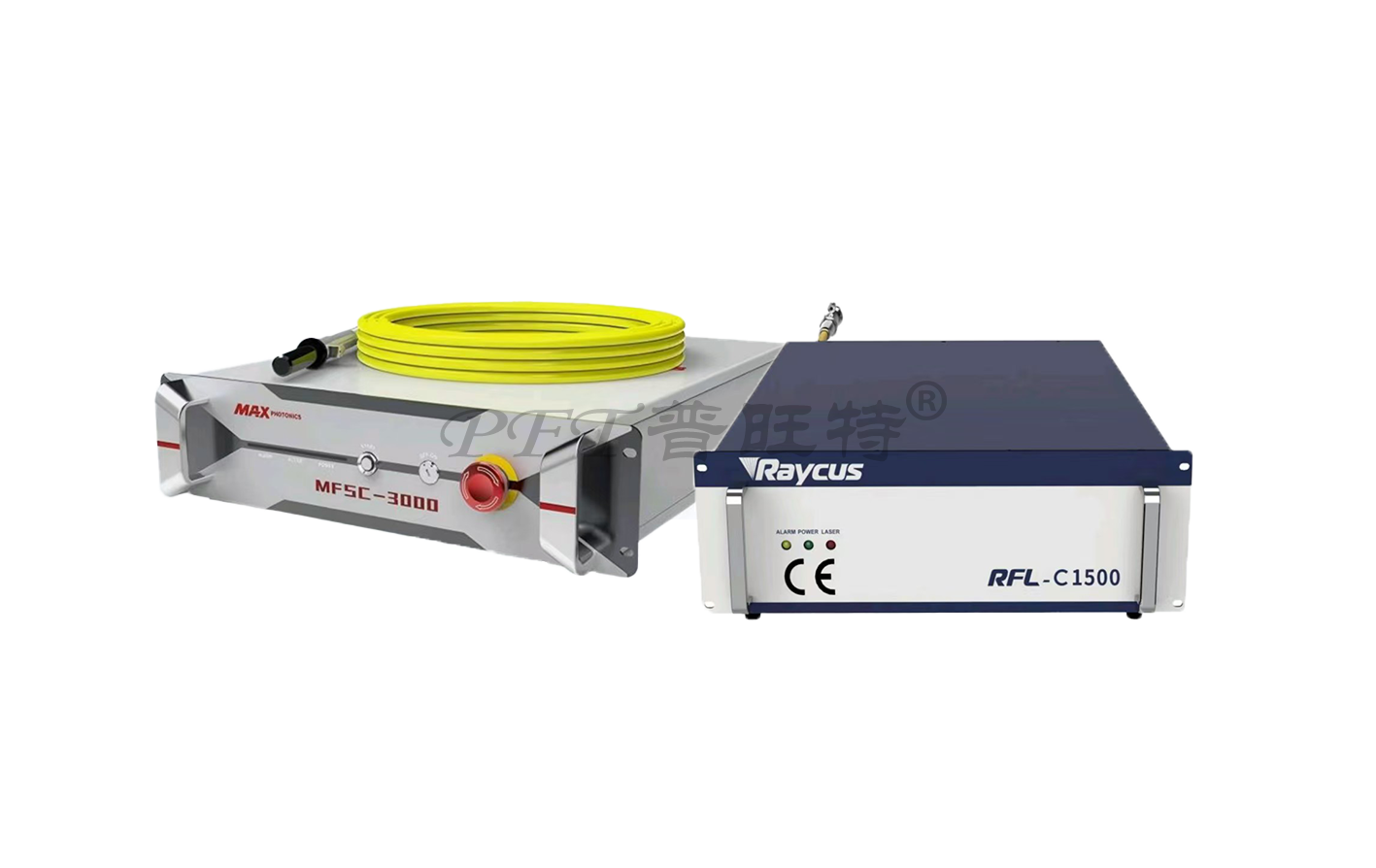

Laser source Raycus/MAX, Small size, light weight, easy integration; high power, excellent beam quality; low energy consumption; suitable for different applications

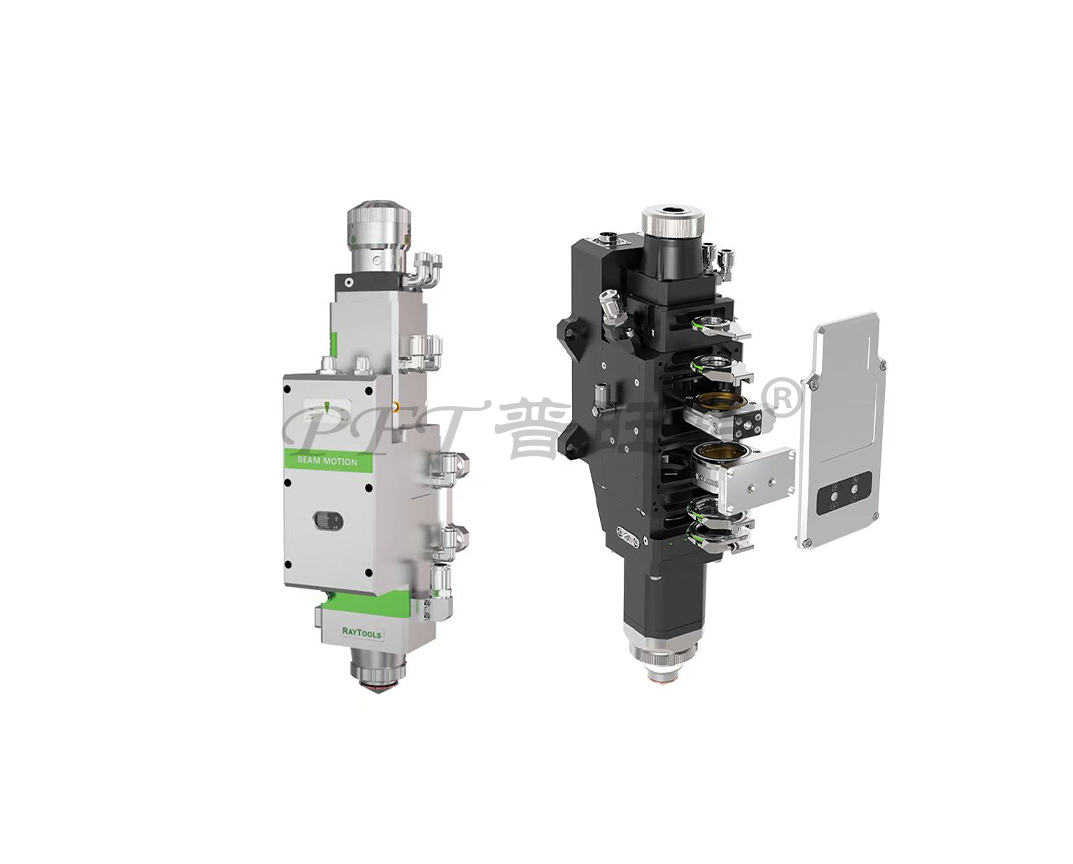

Laser cutting head Anti-collision, automatic height adjustment, precise cutting, a variety of brand for choice / Cypcut system Simple operation, making metal cutting more intelligent and convenient

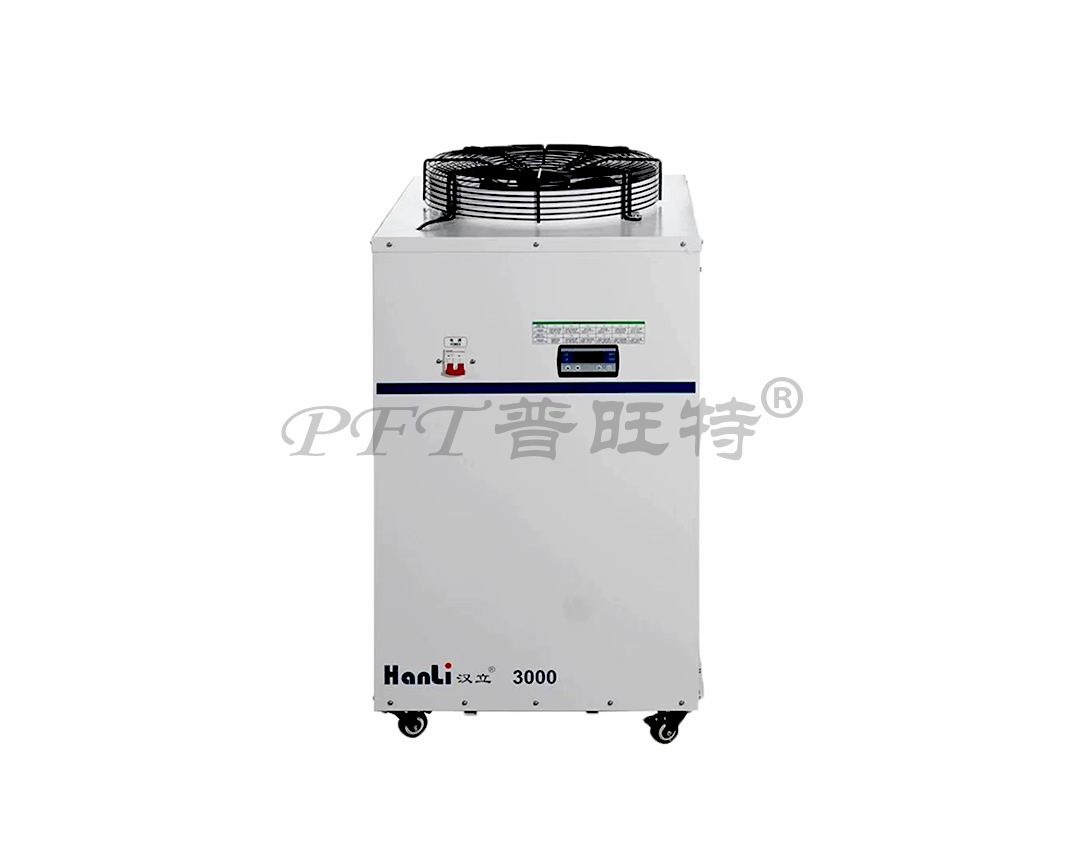

Special domain chiller With a suitable power chiller to prevent machine overheating and ensure machine life

Stretched aluminium beam High density, high rigidity and light weight, good dynamic performance, strong deformation resistance, high flexibility / Newly upgraded welding bed Stress annealing treatment, maintain the extremely high stability and cutting accuracy of the bed

Laser source Raycus/MAX, Small size, light weight, easy integration; high power, excellent beam quality; low energy consumption; suitable for different applications

Laser cutting head Anti-collision, automatic height adjustment, precise cutting, a variety of brand for choice / Cypcut system Simple operation, making metal cutting more intelligent and convenient

Special domain chiller With a suitable power chiller to prevent machine overheating and ensure machine life

Servo motors Utilizing renowned brands, these motors offer high precision, high response, high efficiency, resistance to voltage surges, and a long lifespan.

Speed reducer Utilizes renowned brand components; high precision, low noise, high hardness, long service life, and wear resistance. / Gear racks Made with renowned brands, available in straight and helical gear options, high-precision ground, robust and durable.

Voltage regulator High voltage regulation accuracy, using a copper coil design, sufficient power, stable voltage, and six protections including overvoltage, undervoltage, overload, overtemperature, time delay, and short circuit.

Guide rails Made with renowned brands, offering high positioning accuracy, wear resistance, noise reduction, and easy replacement. / Nozzle Each machine comes standard with 20 different nozzle models to ensure customers can test cutting applications.

Servo motors Utilizing renowned brands, these motors offer high precision, high response, high efficiency, resistance to voltage surges, and a long lifespan.

Core Process Parameters

Processing Capability Chart

Material Type	1500W	3000W	6000W	12000W
Carbon Steel (O₂)	14 mm @ 0.6 m/min	20 mm @ 0.6 m/min	25 mm @ 0.8 m/min	40 mm @ 1.0 m/min
Stainless Steel (N₂)	5 mm @ 0.8 m/min	10 mm @ 0.8 m/min	16 mm @ 1.0 m/min	40 mm @ 1.2 m/min
Aluminum (N₂)	4 mm @ 0.8 m/min	8 mm @ 1.0 m/min	16 mm @ 1.0 m/min	30 mm @ 1.2 m/min
Brass (N₂)	3 mm @ 0.8 m/min	6 mm @ 0.8 m/min	10 mm @ 1.0 m/min	16 mm @ 1.2 m/min
