PMCT-200W Pulsed Laser Cleaning Machine

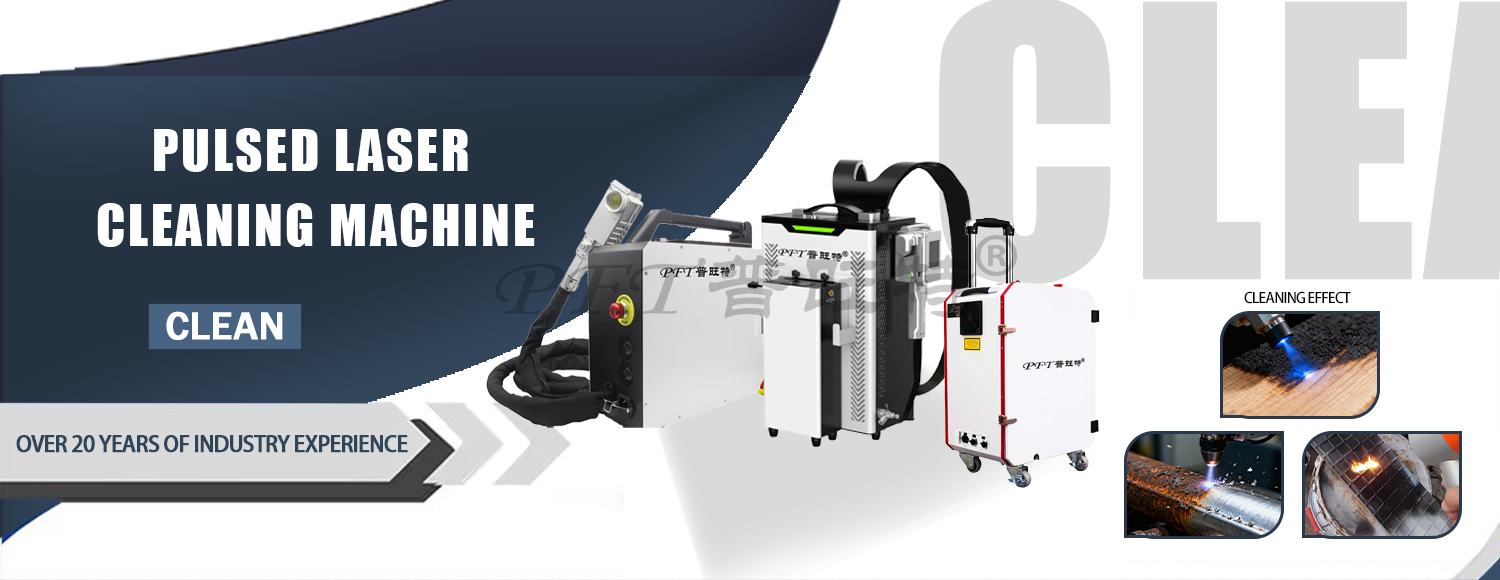

PFT Pulsed laser cleaning machines come in various appearances such as portable, backpack and trolley types, which are flexible and lightweight. You can choose from power ranging from 100w to 1000w. They can deeply clean metal oxide layers and wood, etc., and are essential products for your fine processing.

Pulsed laser cleaning machine
Product family
Handheld / Backpack / Pull rod type
Available configurations
Nanosecond pulse fiber
Laser type
1064±5nm
Center wavelength
Get a QuoteTalk to an Engineer

01

Product Description

PMCT-200W Pulsed Laser Cleaning Machine 1 Laser cleaning machine detail

PFT Laser (河北普飞特智能有限公司) is a professional manufacturer of handheld fiber laser welding machine, fiber laser welding machine products are laser welding machine, 3 in 1 laser welding machine, 4 in 1 laser welding machine, double feeding laser welding machine, and laser cleaning machine and many other equipment, and domestic well-known brands of laser source manufacturers to establish a strategic partnership, the use of mature control systems, and can be customized to provide services, For customer orders of less than 100 units, delivery can be completed within 10 days; for customer orders of 500 units or more, delivery can be completed within 30 days, with professional experience in marine transportation, for customers to provide protection services and suggestions for the transportation of goods. The company has a high-end science and technology research and development team, comprehensive ability of the sales team and professional after-sales service team, the use of Sino-foreign school-enterprise cooperation in research and development, the use of international universities and research and development results in the enterprise transformation, so as to continue to withdraw from the new products, to provide customers with efficient, energy-saving, environmentally friendly high-quality, low-priced products.

02

Technical Parameters

Available Configurations

01

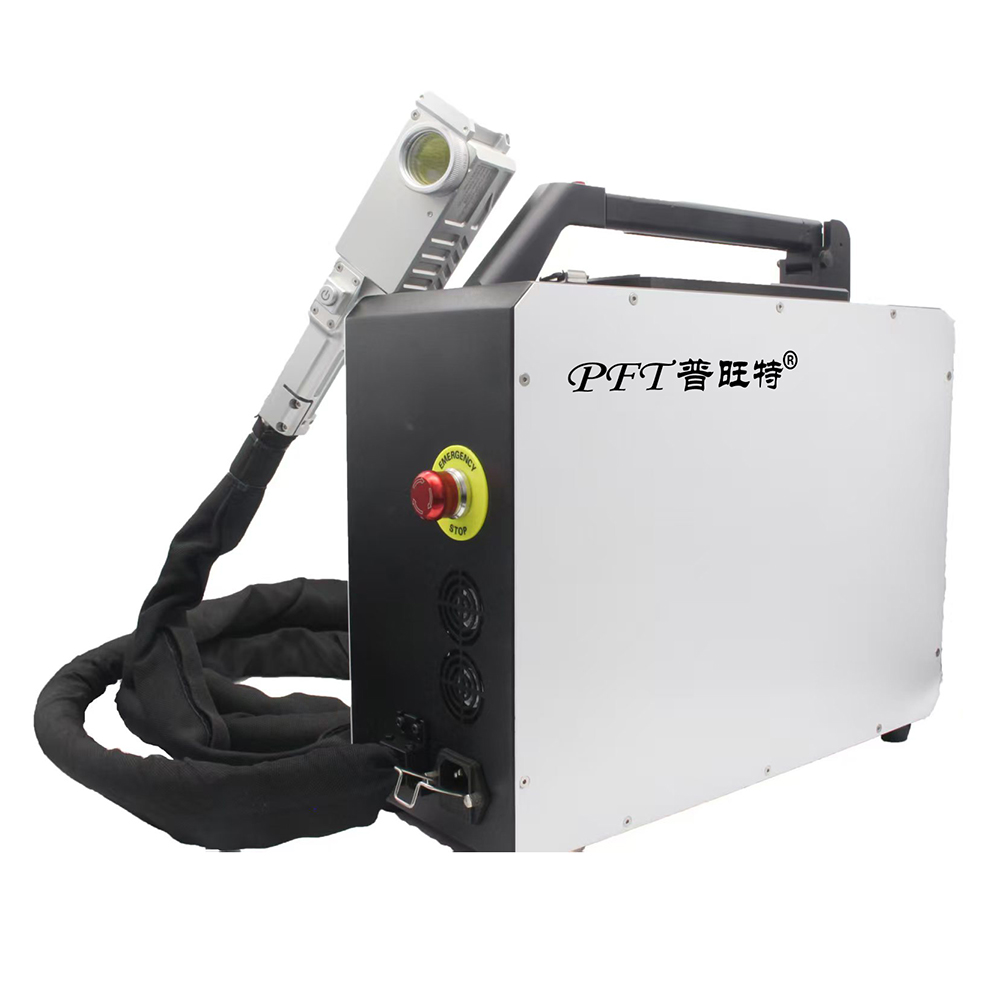

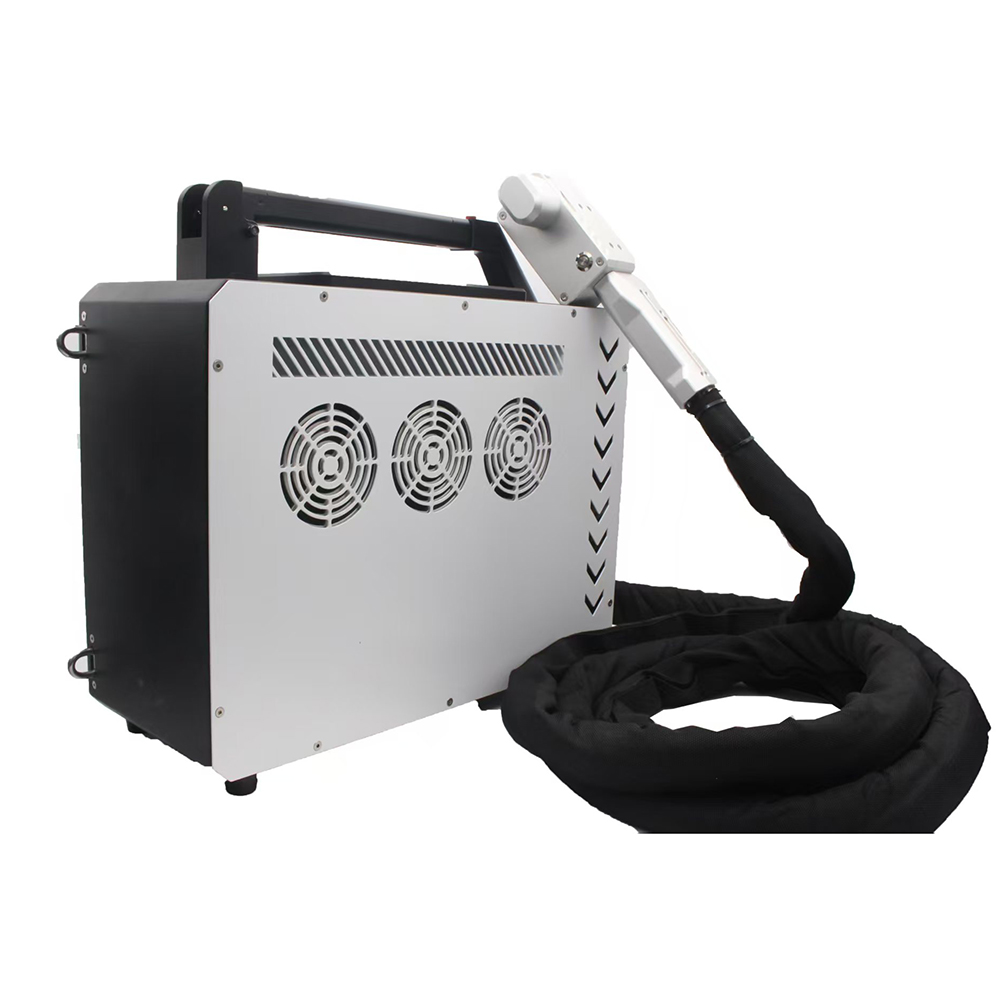

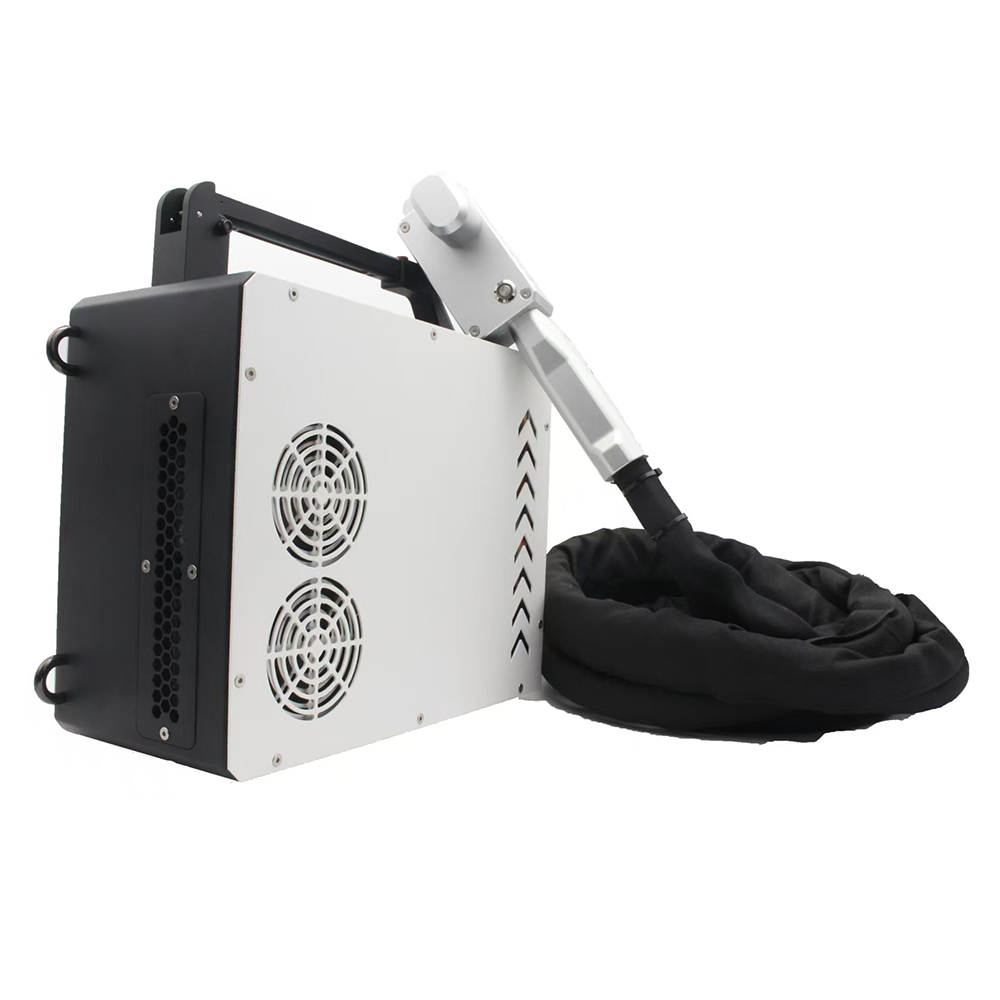

Handheld laser cleaning machine

Efficient and portable, A4 paper size, capable of external lithium battery connection, strong mobility; Small mini laser head, 700g can be held for a long time without fatigue, flexible and convenient; Excellent data and high cleaning efficiency; Oil removal, paint removal, rust removal, strong effect and fast speed; The system is stable, easy to operate, with a lifespan of up to 50000 hours, and is economically efficient; It is widely applicable in various industries, including weld cleaning, mold cleaning, rust removal, paint removal, oxide layer removal, and surface roughening.

Handheld laser cleaning machine Laser cleaning machine detail
Laser typeNanosecond pulse fiber
Maximum output power (W)50/100/200
Center wavelength (nm)1064±5
Fiber beam quality (㎡)≤1.6
Power regulation range (%)10-100
Output power stability (%)≥95
Laser pulse frequency (kHz)45-170/20-200/20-200
Pulse length (ns)100/170
Maximum single pulse energy (mJ)1.1/1.6
Conductive fiber length (M)3/5/10
Laser protection level4
Cooling methodforced air cooling
Overall dimensions (mm)280*220*122/280*380*150/339*450*163
Whole machine weight (kg)8-10-15.5

02

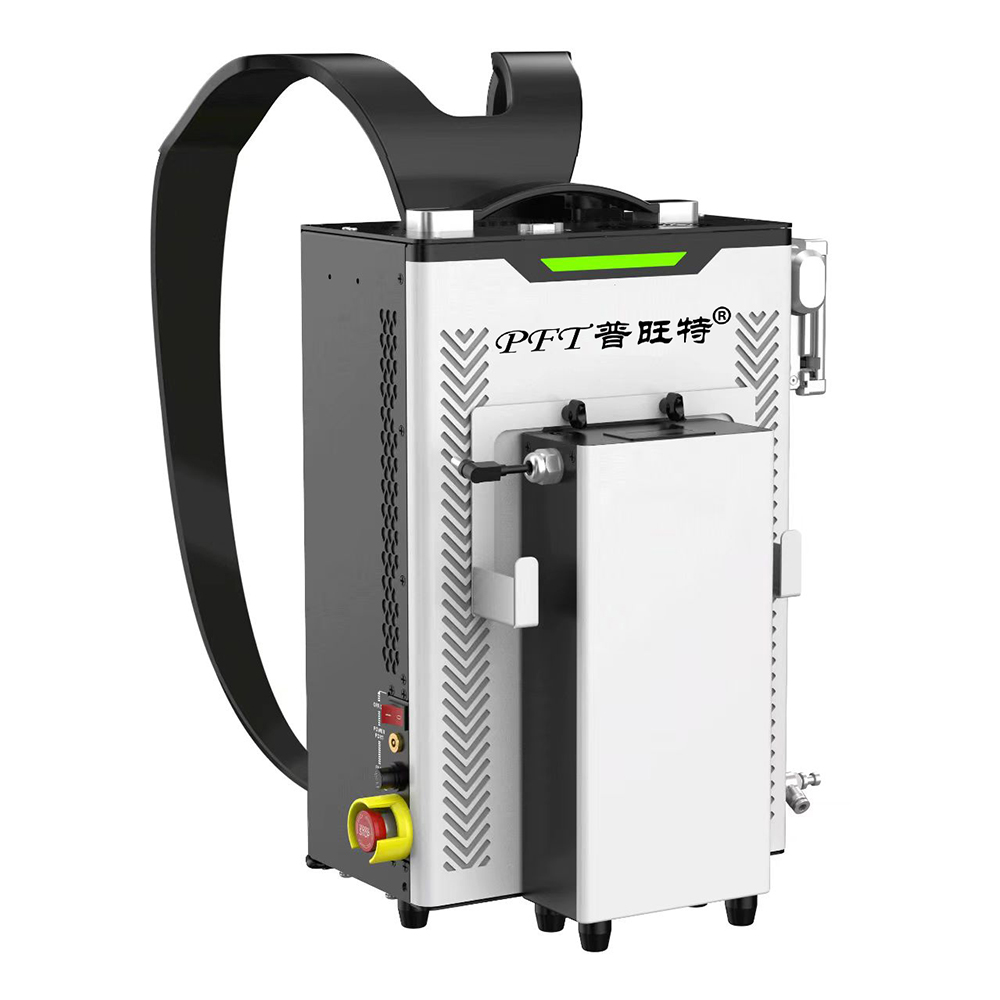

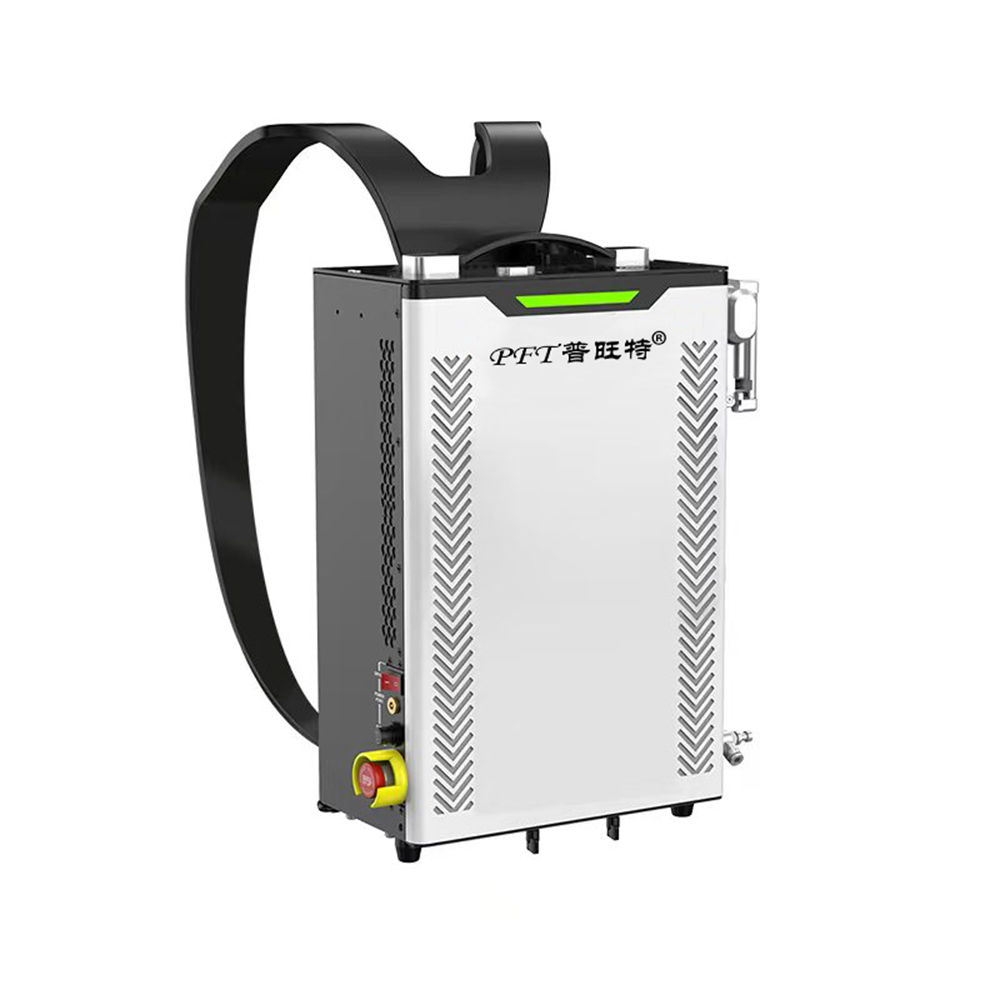

Backpack style laser cleaning machine

Efficient and portable, A3 paper size, capable of external lithium battery connection, strong mobility; Small mini laser head, 700g can be held for a long time without fatigue, flexible and convenient; The intelligent touch panel is mounted on the laser head, and its backpack design makes it easy to operate; Moving Cleaning, working at heights, and working in confined spaces: the best choice.

Backpack style laser cleaning machine Laser cleaning machine detail
Laser typeNanosecond pulse fiber
Maximum output power (W)100/200/300
Center wavelength (nm)1064±5
Fiber beam quality (㎡)≤1.6
Power regulation range (%)10-100
Output power stability (%)≥95
Laser pulse frequency (kHz)20-200
Pulse length (ns)180~220
Maximum single pulse energy (mJ)1.1/1.6
Conductive fiber length (M)1.5
Laser protection level4
Cooling methodforced air cooling
Overall dimensions (mm)280*220*122/280*380*150/339*450*163
Whole machine weight (kg)20

03

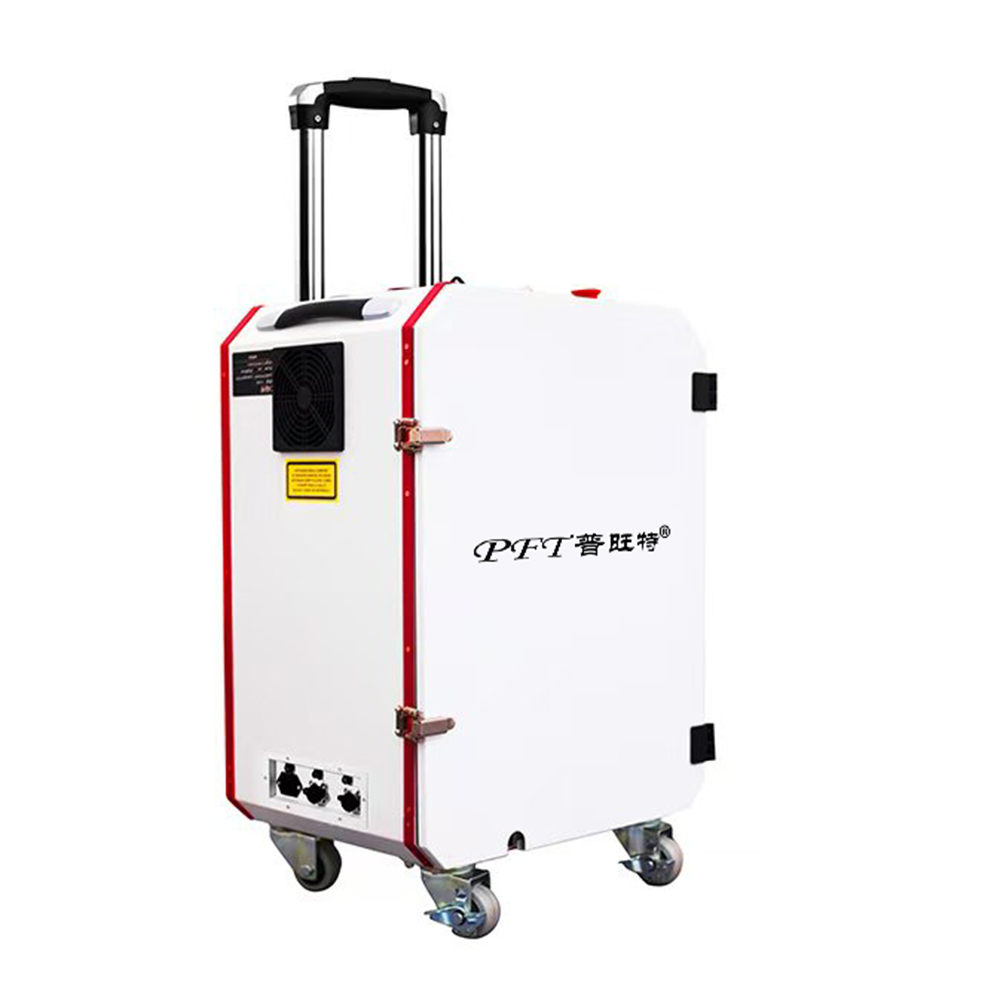

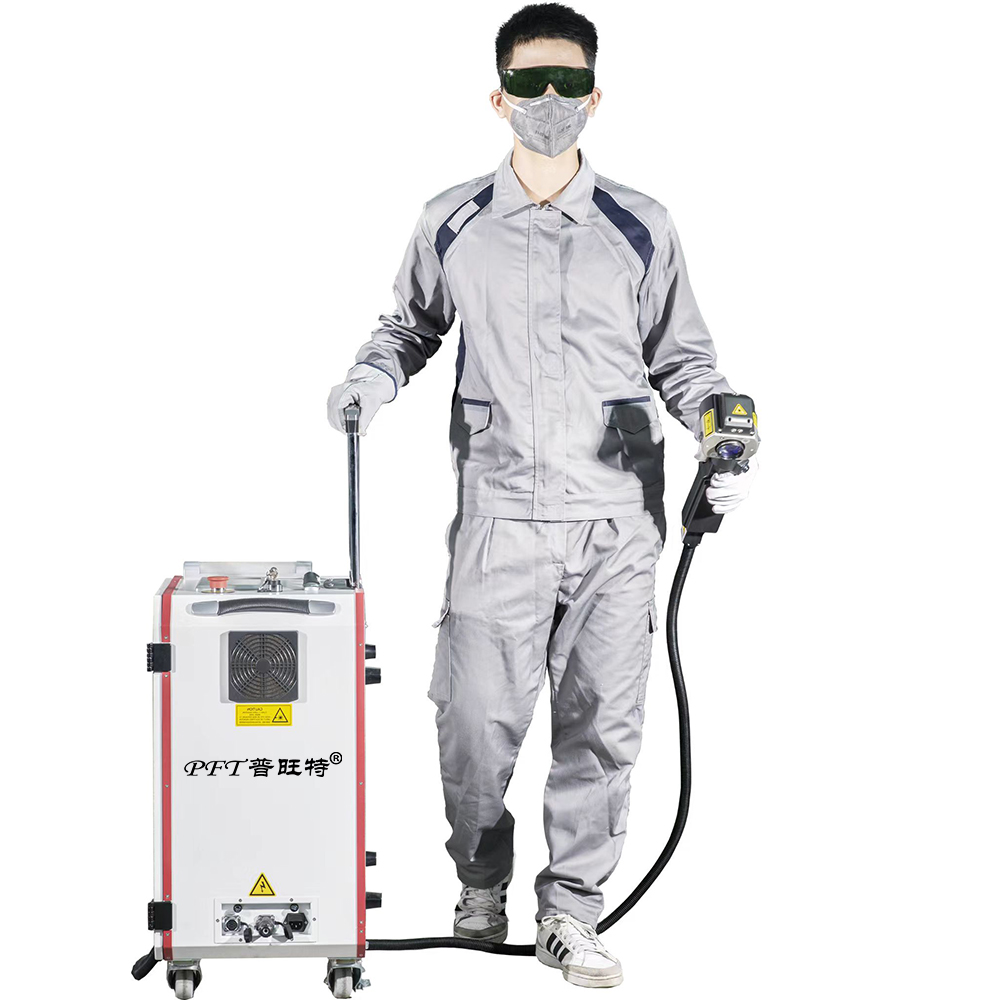

Pull rod type air-cooled laser cleaning machine

Trolley box design, the box can be moved with people, flexible and maneuverable; The system is stable, easy to operate, with a lifespan of up to 50000 to 80000 hours, and is economically efficient; Ready to use with power on, no consumables required, one-time investment does not incur additional costs; High cleaning accuracy, nanometer level controllability, and no damage to the substrate.

Pull rod type air-cooled laser cleaning machine Laser cleaning machine detail
Laser typeNanosecond pulse fiber
Maximum output power (W)200
Center wavelength (nm)1064±5
Fiber beam quality (㎡)≤1.8
Power regulation range (%)10-100
Output power stability (%)≥95
Laser pulse frequency (kHz)1-4000
Pulse length (ns)10-350
Maximum single pulse energy (mJ)1.5
Conductive fiber length (M)3/5
Laser protection level4
Cooling methodforced air cooling
Overall dimensions (mm)430*530*780
Whole machine weight (kg)67

03

Pulse laser cleaning machine features

PMCT-200W Pulsed Laser Cleaning Machine Pulse laser cleaning machine features Laser cleaning machine detail
  • >>Pulse laser cleaning machine has two light sources, Gaussian light and flat top light.
  • >>Gaussian light is suitable for contaminants with strong adhesion, such as welding spots, oxide scale, rust, metal plating, and more.
  • >>Multi-mode flat-top beam is suitable for weak or medium adhesion of pollutants and provides better non-destructive protection, such as for carbon deposits, oxide layers, non-metallic paints, and coatings.
  • >>Pulse laser cleaning has many application scenarios and is applicable to a variety of materials, such as metals, high-density solid wood, and ceramics. It has little damage to the surface, and the flat-top beam can achieve almost no damage.

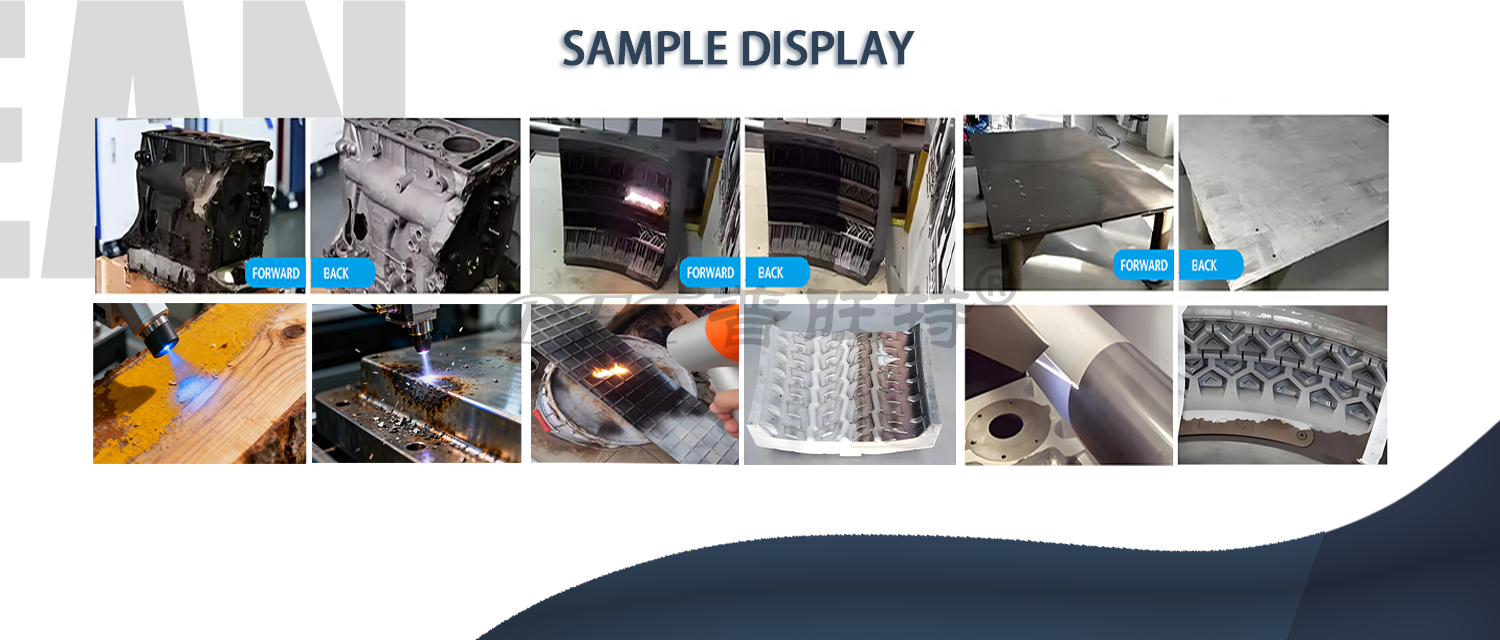

PMCT-200W Pulsed Laser Cleaning Machine application 1 Laser cleaning machine detail

04

Company Introduction

PFT Laser (河北普飞特智能有限公司) is a high-tech enterprise specializing in manufacturing and R&D of optical fiber laser welding and cutting equipment. With its own perfect equipment production base, international senior technical personnel and high-quality sales team, for domestic and foreign customers tailored to a complete set of laser processing solutions, laser equipment and full service. Now the main products include: laser welding machine, laser cleaning machine, laser cutting machine and CNC cutting machine and other series, widely used in shipbuilding, steel structure, bridge, construction, mining machinery, automobile manufacturing and other industries. The core research and development team of the company is composed of well-known professors, senior engineers, doctors and masters, and has conducted industry-university-research cooperation with many universities, providing inexhaustible power and technical support for the company's product research and development and core technology. Based on this, the company's products can not only meet the common needs of the market, but also provide users with fast and agile special customized services, providing users with strong technical support for differentiated unique products.

About us: company offices and factory

05

Factory Tour

Company as the domestic laser welding and cutting equipment professional development enterprises, we wholeheartedly to provide customers with good after-sales service, including product technology, product installation, product training, product maintenance, etc.; To provide customers with technology, reliable products and complete technical solutions, customer satisfaction is our service tenet. The company focuses on customer demand, facing the majority of customers, on the basis of the pursuit of quality, according to the existing technical conditions to meet the customer's personalized customization, human culture services, and follow the progress of science and technology, the pursuit of quality improvement, at the same time in the science and technology research and development department investment, research and development of new products, to provide customers with high quality advanced laser numerical control welding and cutting equipment. And with its excellent quality, excellent performance and perfect after-sales service to win the unanimous praise of customers.

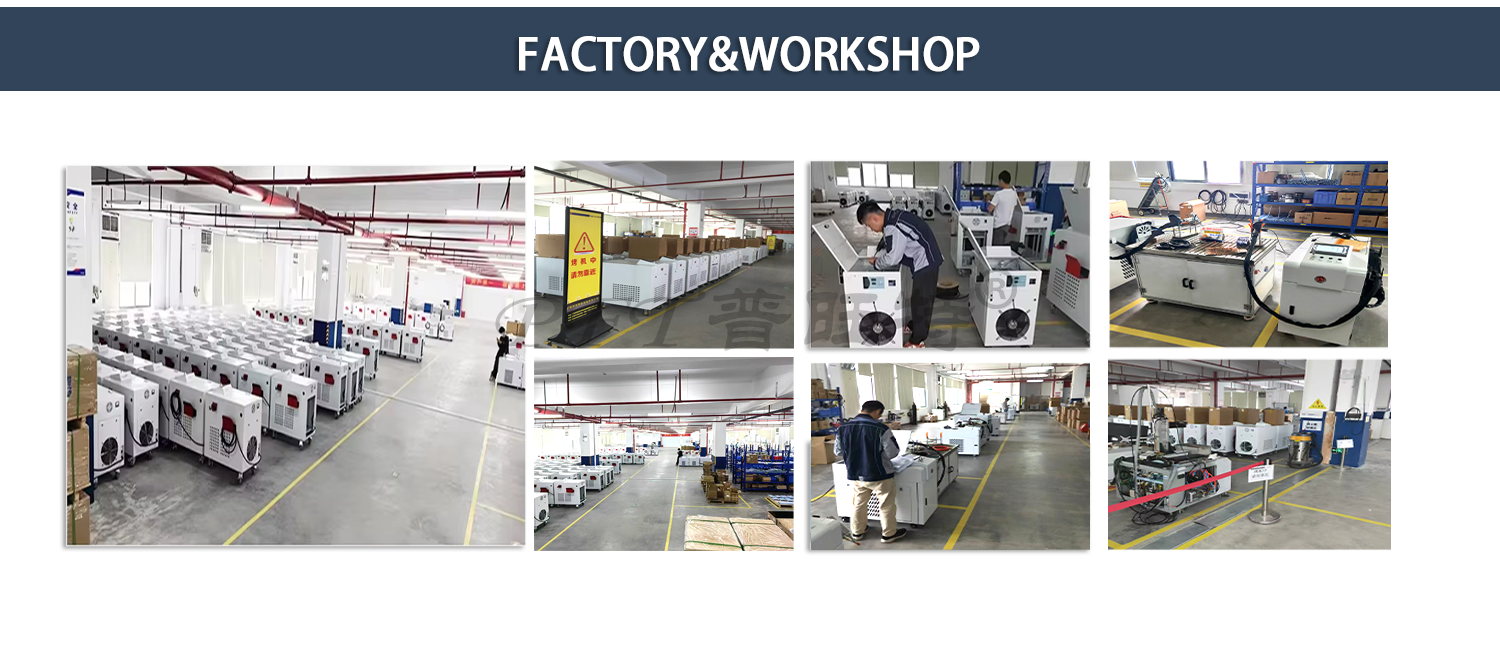

Factory and workshop production floor

Buyer information

Plan the right laser cleaning machine configuration

Request a quote

Application fit

Confirm the machine against the actual industries, part geometry, material, and production volume.

Weld cleaningMold cleaningRust removalPaint removalOxide layer removalSurface rougheningMetal oxide layersWood
