Core Components

Key Features

⚡

01

Efficient Laser Output

Supports 300W / 000W / 1000W / 1500W / 2000W / 3000W power options for different material thicknesses and production needs.

⚙️

02

Equipment Compatibility

Designed for maintenance, replacement, and upgrade of laser cutting, welding, and cleaning equipment.

Technical Data

Technical Specifications

ParameterValue

Models

MFSC-1000W / MFSC-1500W / MFSC-2000W / MFSC-3000W / MFSC-4000W / MFSC-5000W / MFSC-6000W

Nominal Power

1000W/1500W/2000W/3000W/4000W/ 5000W/6000W/8000W/12000W/20000w/30000w

Industry Use Cases

Applications

01Equipment Maintenance02Laser Equipment Integration03Metal Fabrication

Global Logistics

Packaging & Transportation

PFT laser machine packaging and transportation scene

Every machine is reinforced with industrial-grade wooden crating, moisture-proof film wrapping, and shock-absorbing foam. We partner with experienced freight forwarders for FCL and LCL sea freight, air freight, and door-to-door delivery worldwide.

1Wooden export crate with steel reinforcement
2Moisture-proof & shock-absorbing inner packaging
3Sea / Air / Express — flexible shipping modes
4Shipped to 60+ countries, full insurance covered

60+ Countries

FAQ

Product FAQ

Q01What applications is Raycus MAX Laser Source suitable for?

▼

A01

Raycus MAX Laser Source is suitable for Equipment Maintenance, Laser Equipment Integration, Metal Fabrication. PFT can recommend a configuration based on material, thickness, and production capacity.

Q02Can this product be customized?

▼

A02

Yes. PFT can customize working area, power, automation configuration, fixtures, and delivery requirements.

Also Consider

Related Products

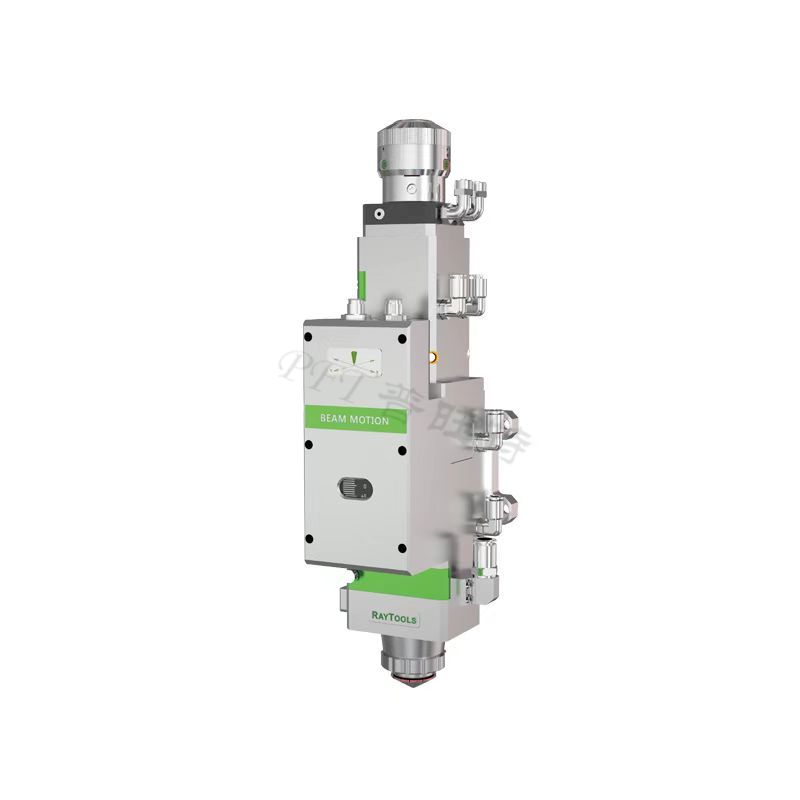

Raytools BOCHU Laser Cutting Head

Laser Welding Gun

1500W

Get a Quote

Interested in Raycus MAX Laser Source?

Get a custom quote tailored to your specific requirements, or speak directly with our application engineers.

Get a Quote Talk to an Engineer

6000W

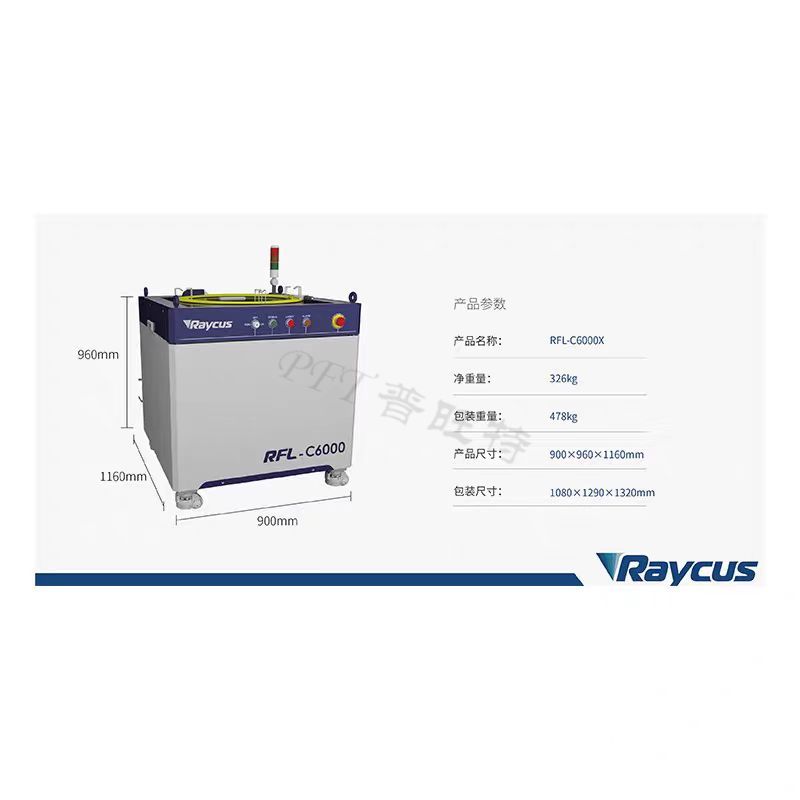

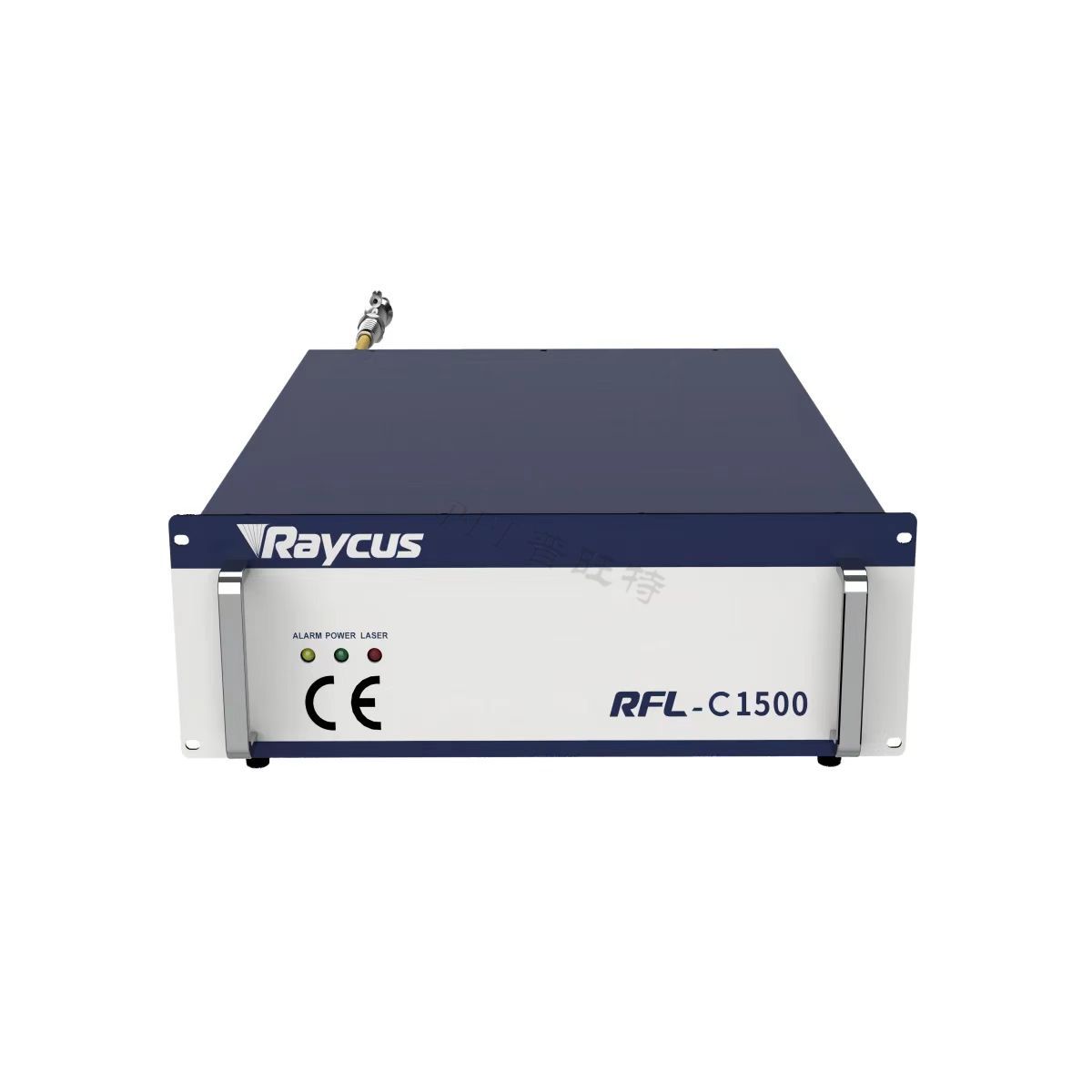

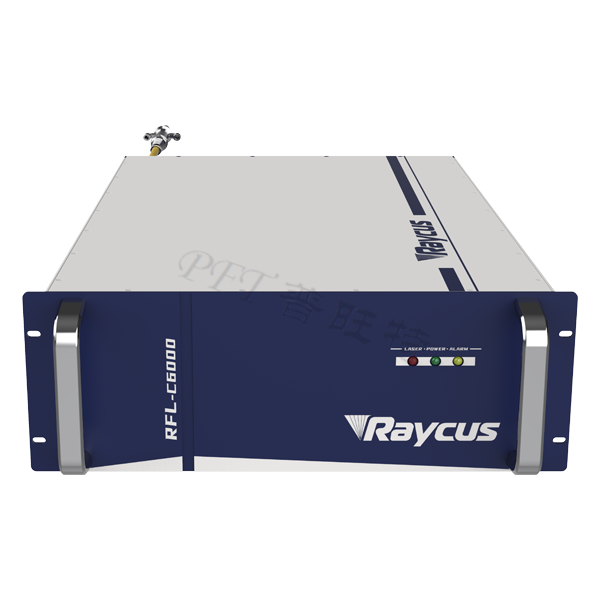

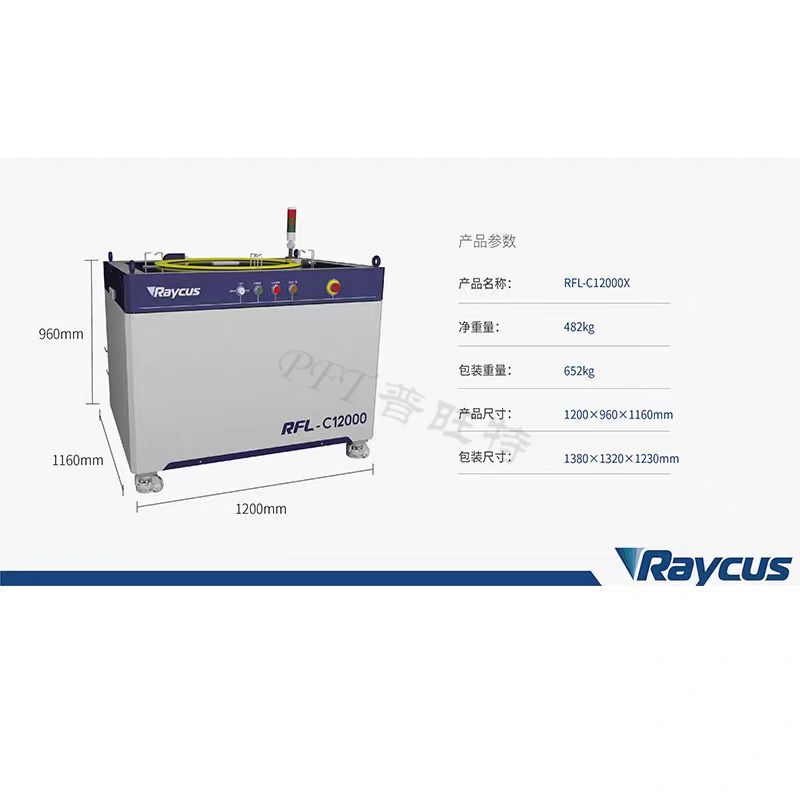

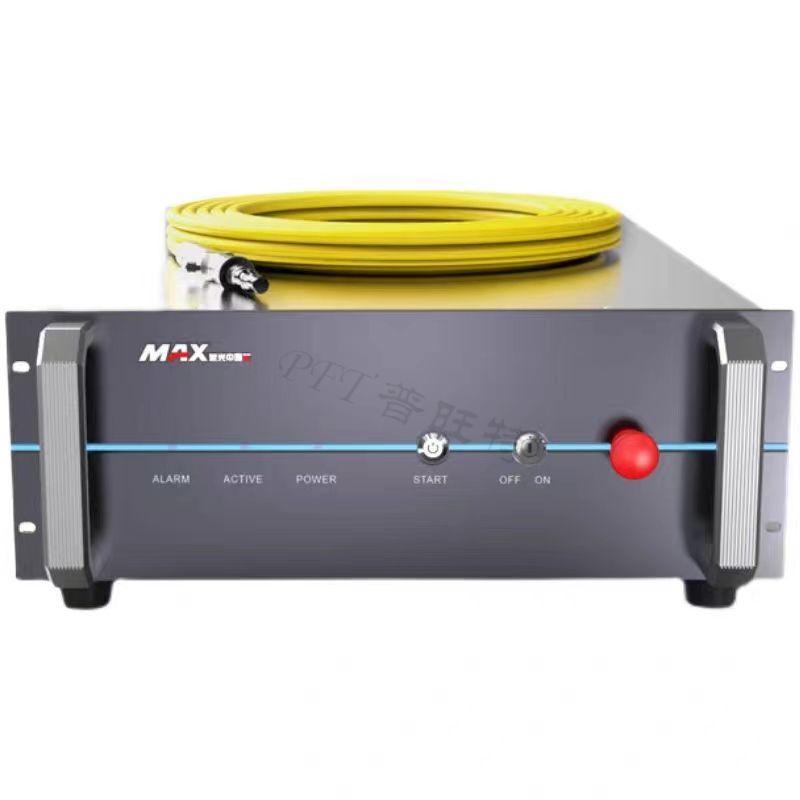

Raycus MAX Laser Source

Name: Raycus MAX Laser Source
Brand: PFT Laser

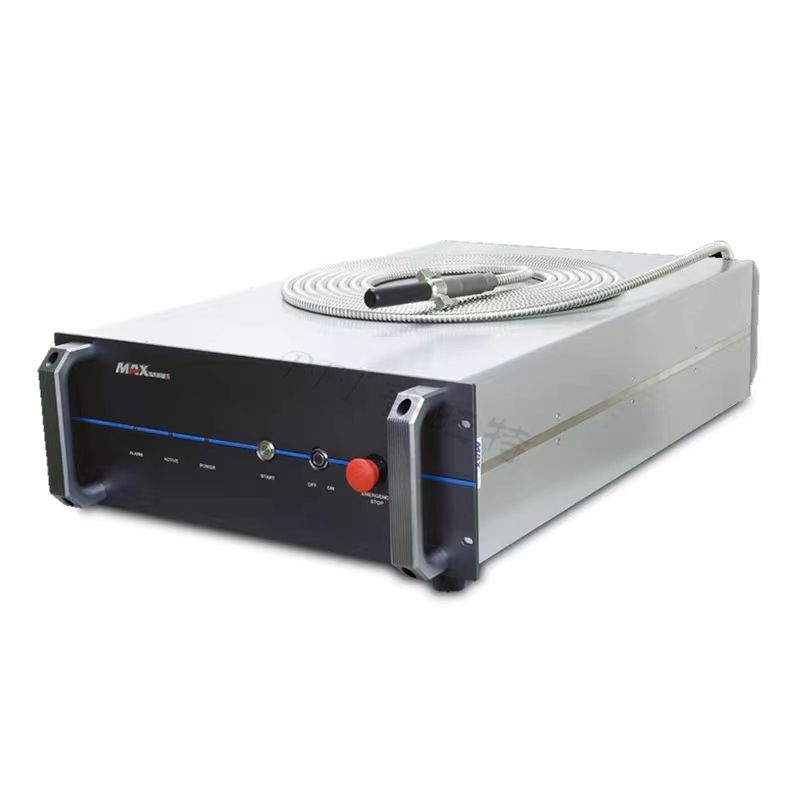

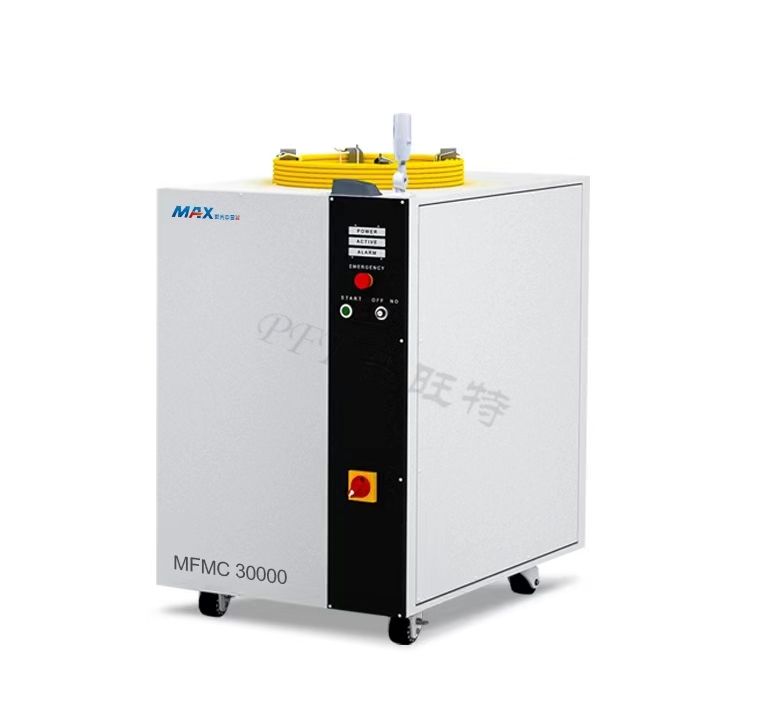

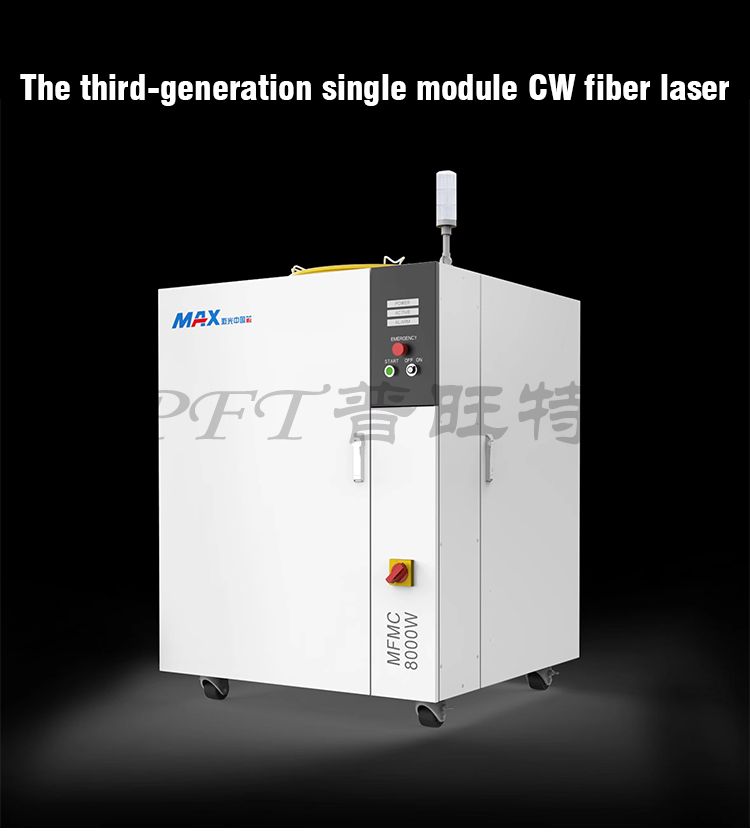

The third-generation single module CW fiber laser series developed by MAX rangesfrom 300W to 80000W, the new lasers have higher electro-optical conversion efficien.cy, higher and more stable optical quality,stronger altitude stress-resisting capacityand they apply optimized second-generation fiber transmission system to ensuremore stable and more sophisticated cutting effect in thick sheet cutting

Supported Materials

Metalworking Equipment

Get a Quote Talk to an Engineer

⚙️

03

Industrial Stability

Designed for continuous production, export projects, and factory line deployment.

Models

MFSC-1000W / MFSC-1500W / MFSC-2000W / MFSC-3000W / MFSC-4000W / MFSC-5000W / MFSC-6000W

Nominal Power

1000W/1500W/2000W/3000W/4000W/ 5000W/6000W/8000W/12000W/20000w/30000w

Mode of Operation

CW/Modulated

Polarization

Random

Mode of Operation

CW/Modulated

Polarization

Random

Power Tunability

10 to 100%

Wavelength

1080 ± 10 nm

Power Tunability

10 to 100%

Wavelength

1080 ± 10 nm

Power Stability

±1%

Laser Beam Quality,BPP

3.1 to 3.5 mm x mrad (100μmQBH)

Power Stability

±1%

Laser Beam Quality,BPP

3.1 to 3.5 mm x mrad (100μmQBH)

Modulation Frequency

≤5 kHz

Preview Red Light Power

200 μw

Modulation Frequency

≤5 kHz

Preview Red Light Power

200 μw

Interface

QBH(LOC)

Length

15/20m standard, other lengths optional

Interface

QBH(LOC)

Length

15/20m standard, other lengths optional

Diameter

100/200/300/400/600 μm

Bending Radius

200mm

Diameter

100/200/300/400/600 μm

Bending Radius

200mm

Supply Voltage

220VAC(-15% to +10%) Single-phase / 400VAC(-15% to+10%) 3-phase

Operating Temperature

+10 to +40 ℃

Supply Voltage

220VAC(-15% to +10%) Single-phase / 400VAC(-15% to+10%) 3-phase

Operating Temperature

+10 to +40 ℃

Storage Temperature

-10 to +60 ℃

Humidity

10 to 85 %

Storage Temperature

-10 to +60 ℃

Humidity

10 to 85 %

Cooling Method

Water Cooling

Cooling Medium

Distilled water/ Glycol Antifreeze
