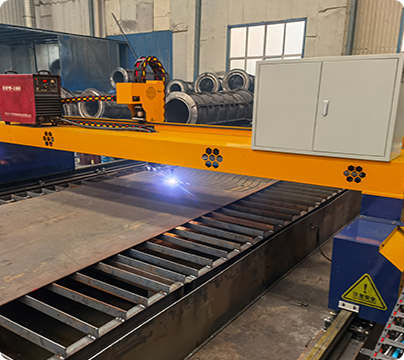

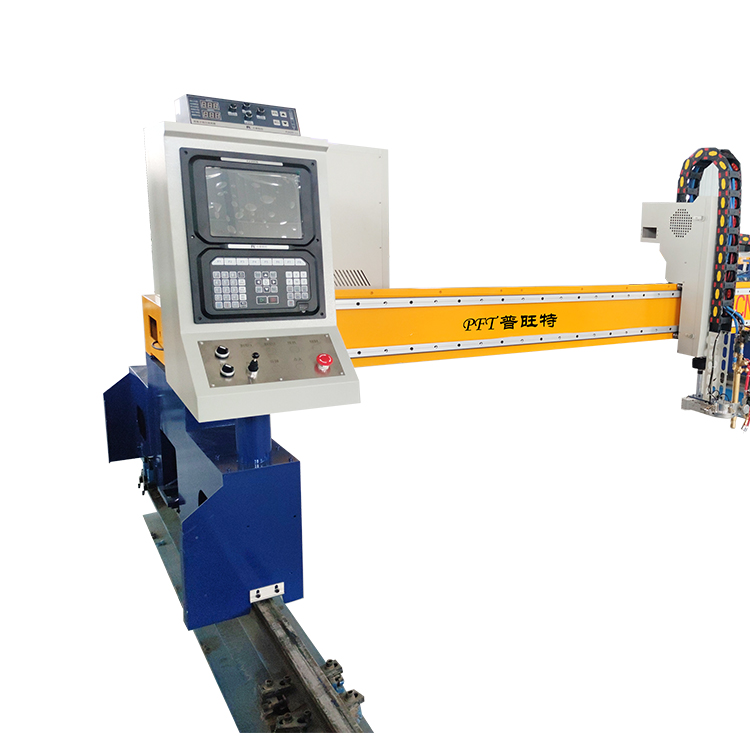

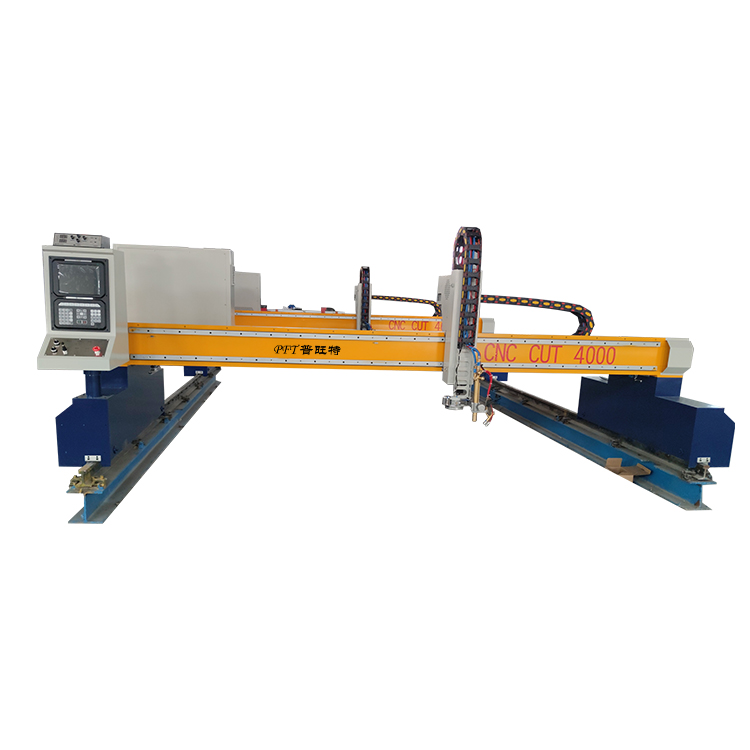

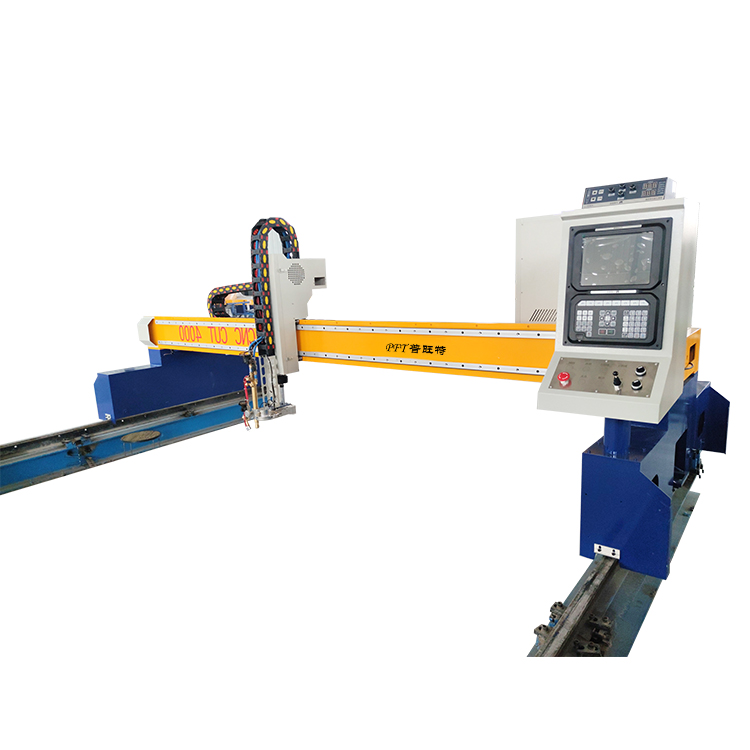

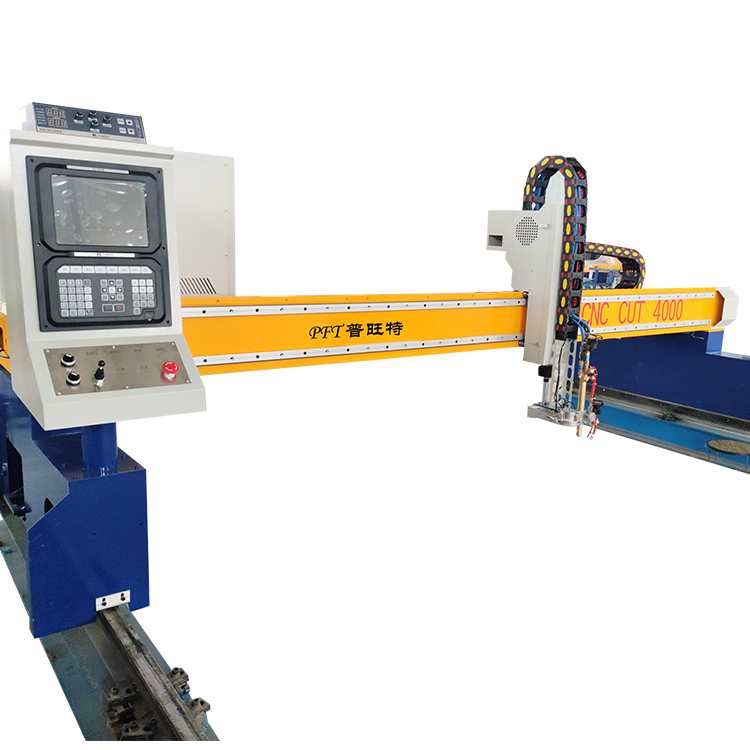

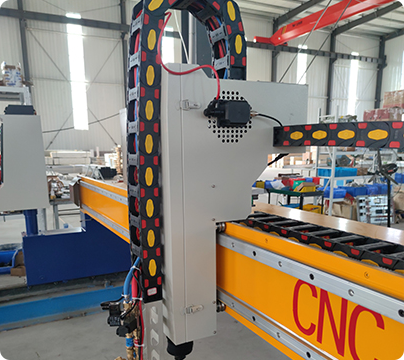

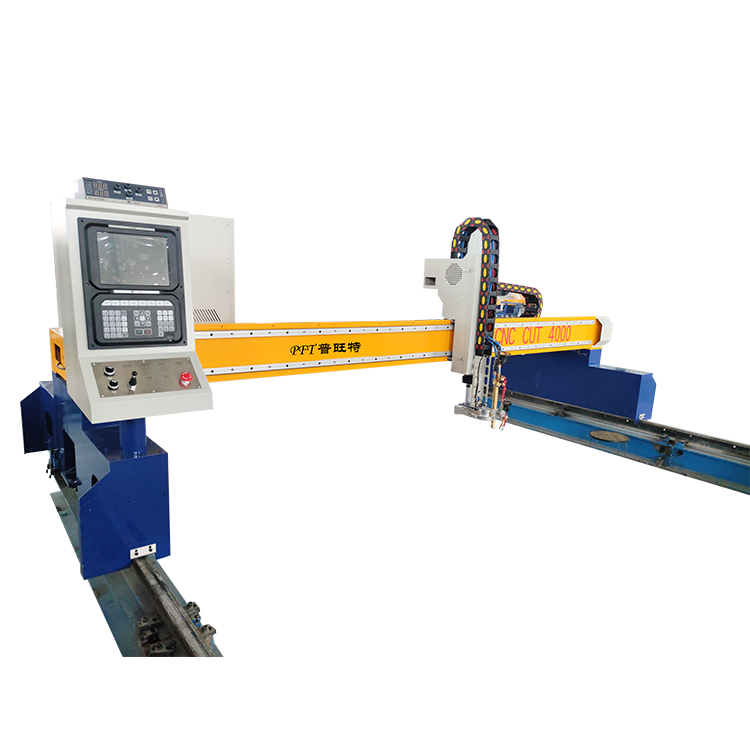

Heavy Duty Gantry CNC Cutting Machine
Efficient and precise industrial grade cutting equipment widely used in metal processing, automobile manufacturing, aerospace and other fields.
Power
Flame cutting – Plasma cutting
Working Area
3300*6000 mm
Accuracy
± 0.2 mm
Acceleration
0-10000 mm/min
Technical Specifications
| Laser Parameters | |
|---|---|
| Power Options | Flame cutting, Plasma cutting |
| Working Area | 3300*6000 mm |
| Max Acceleration | 0-10000 mm/min |
| Precision | |
| Positioning Accuracy | ± 0.2 mm |
| Repeatability | ± 0.5 mm |
Applications

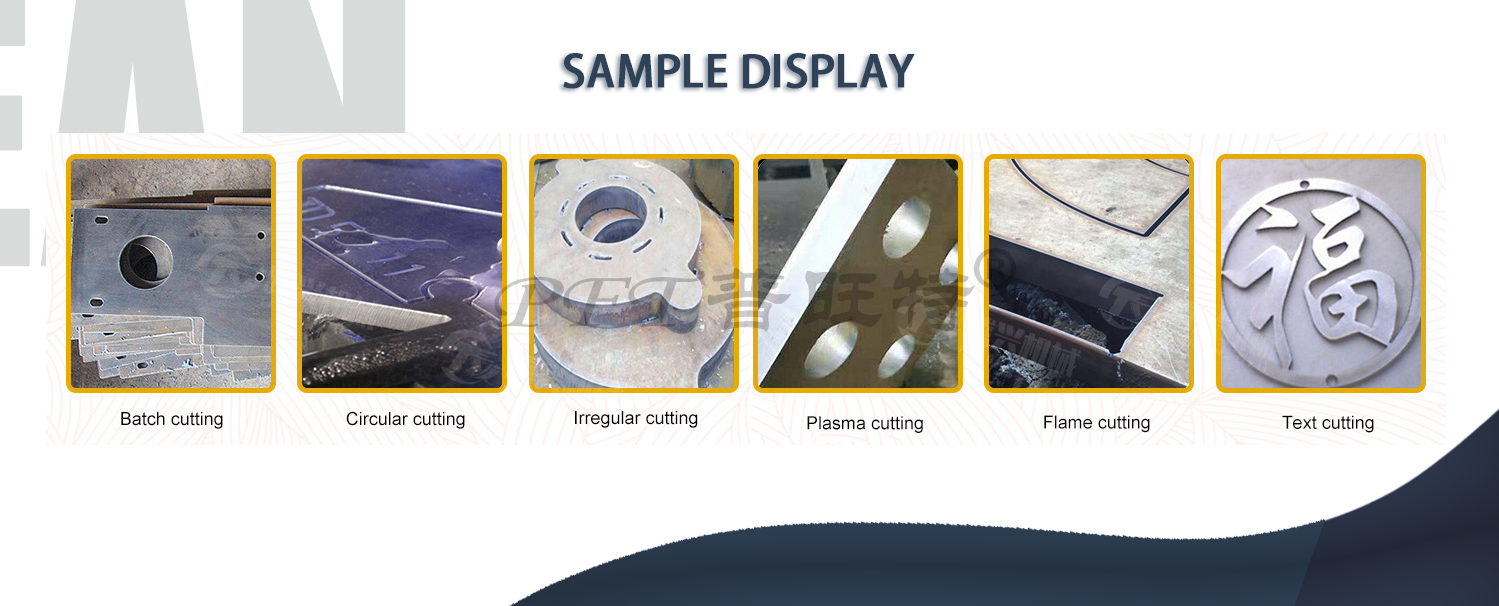

Supported Materials
- Carbon Steel
- Stainless Steel
- Aluminum Plate
- Copper Sheet
- Brass Sheet
- Bronze Plate
- Titanium Plate
Industries
- Manufacturing Billboard
- Signs
- Metal Letters
- LED Letters
- Sheet Metal Processing
- Cabinets Processing
- Elevator Panel Cutting
Product FAQ
Failure: no gas can not arc
Check whether the plasma power line is connected, and whether the switch control line is connected.
Fault: arc break alarm
Causes: cutting voltage is too low, cutting pressure is too high or low.
Fault: Plasma cutting is not clear
Reasons: low plasma input power, too slow speed, or damaged motor nozzle.
Fault: Plasma slit wide
The current is too large or the speed is too slow.
Fault: large slope of cutting section
The cutting speed is too fast or cutting arc pressure is incorrect.
Fault: The cutting size does not match the figure
The inside and outside of the slit compensation is incorrect.
