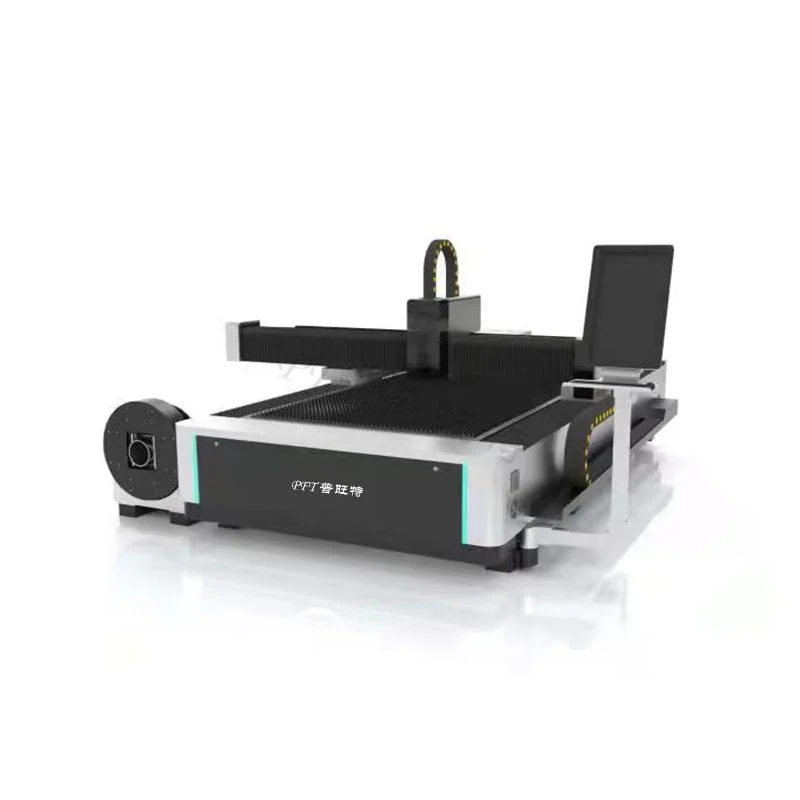

Fiber Laser Cutting3000W6000W12000W20000W

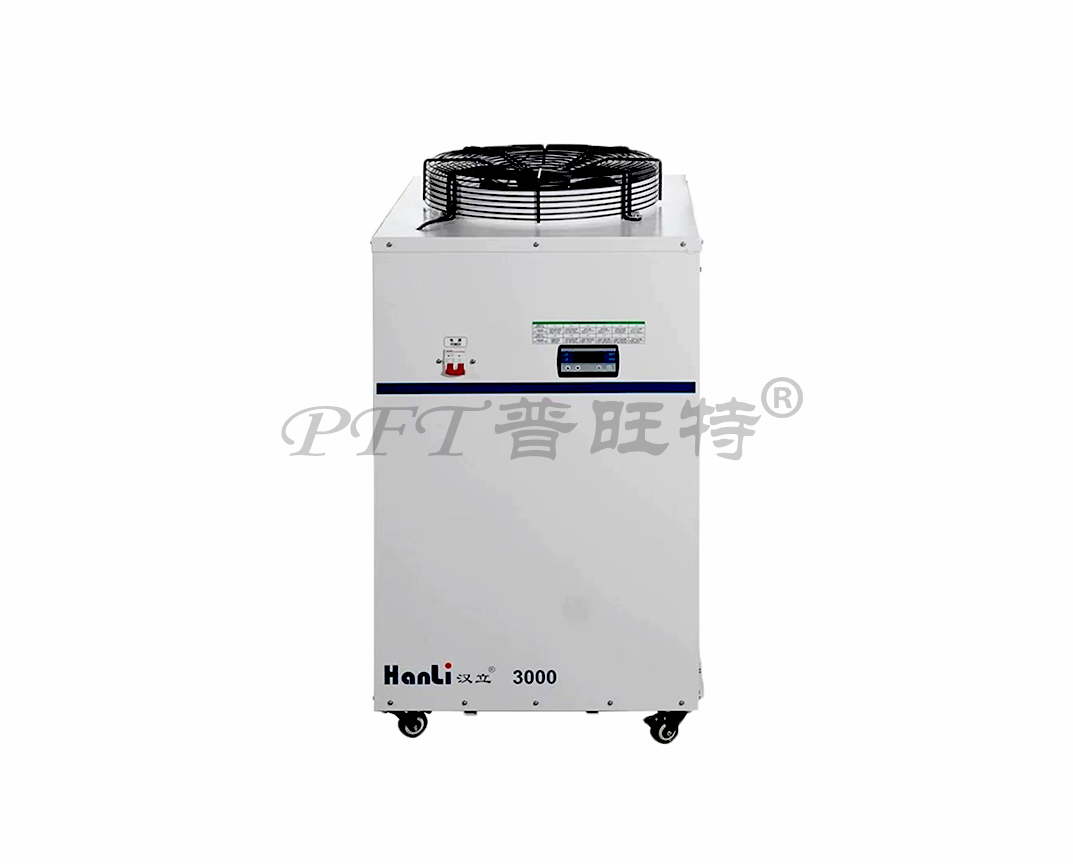

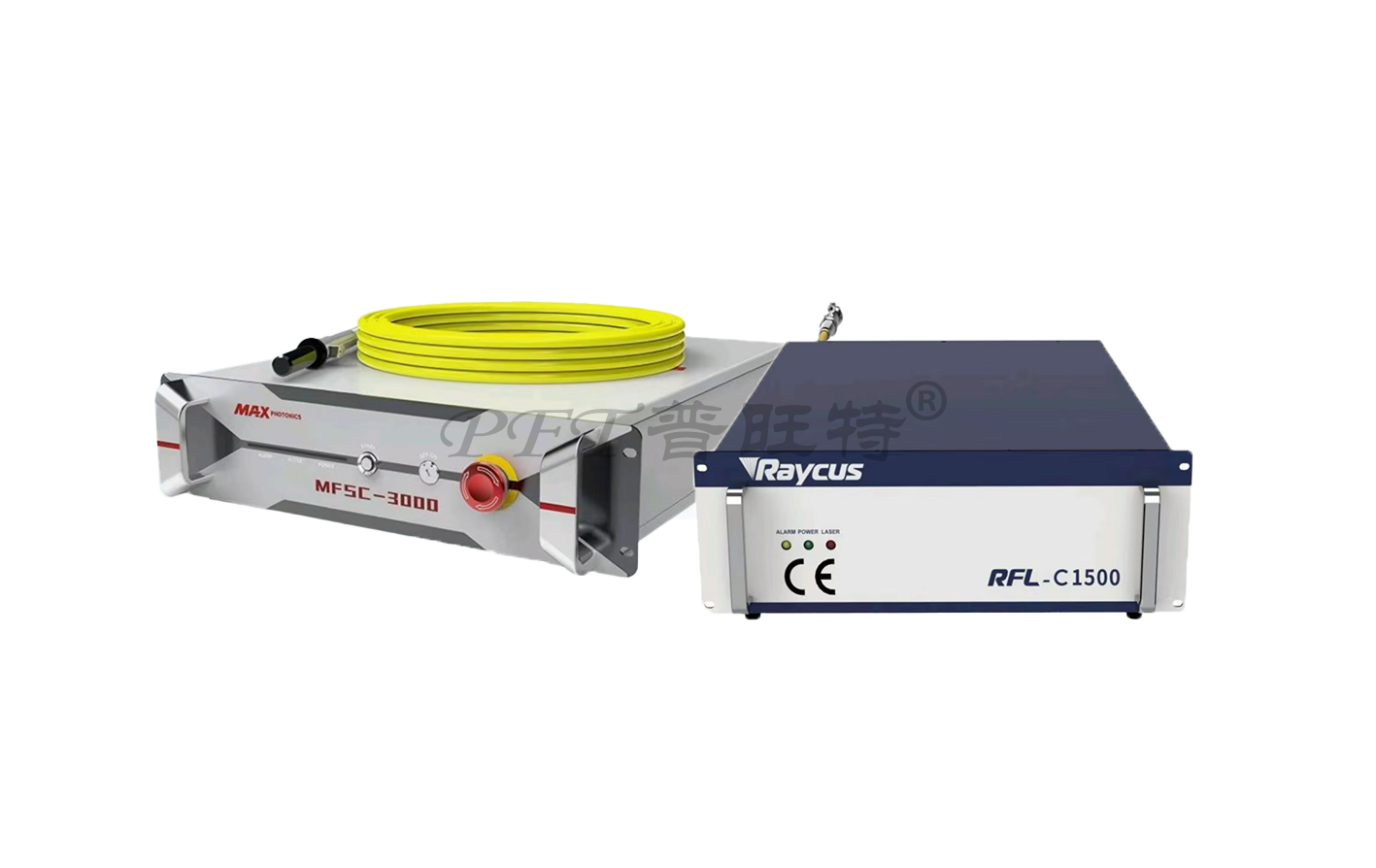

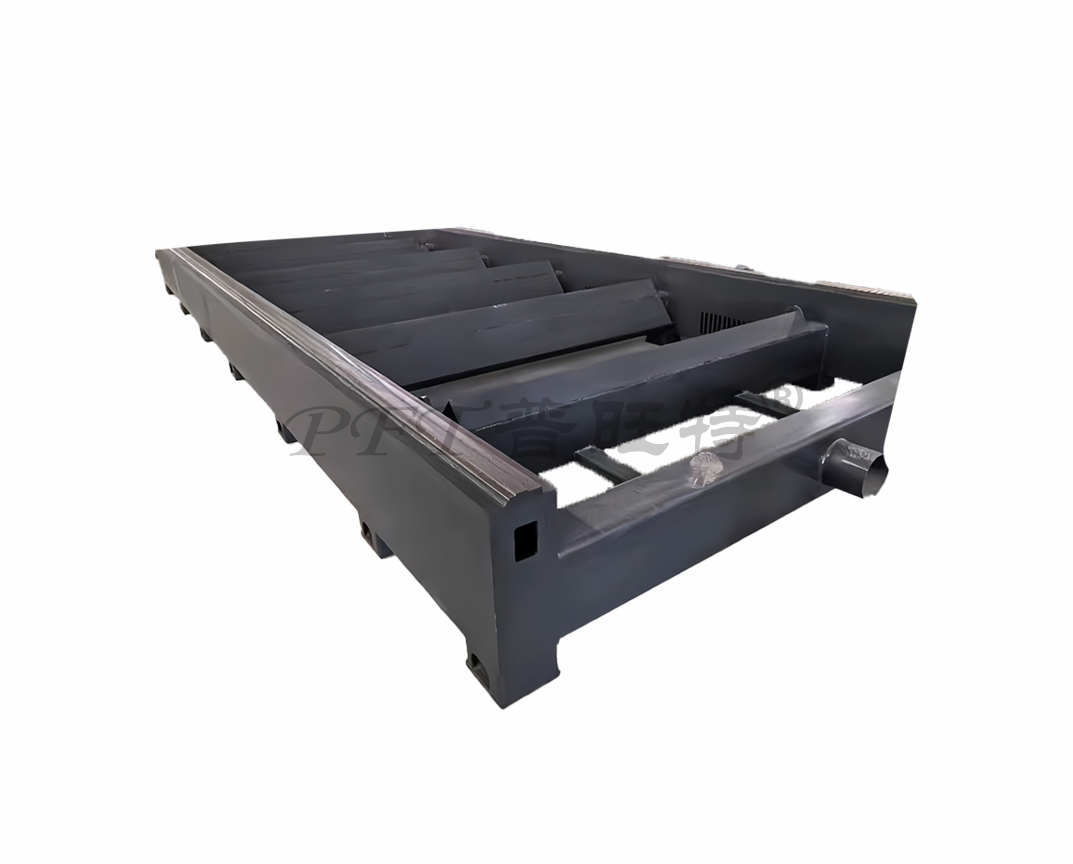

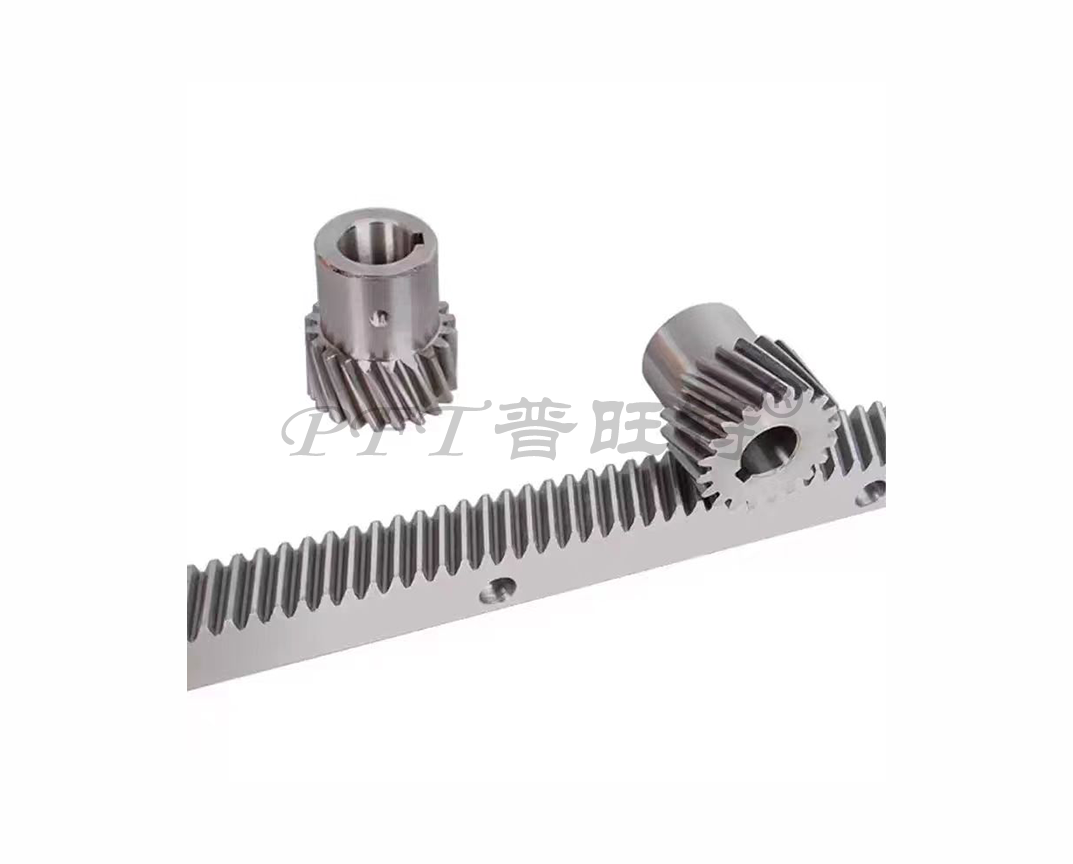

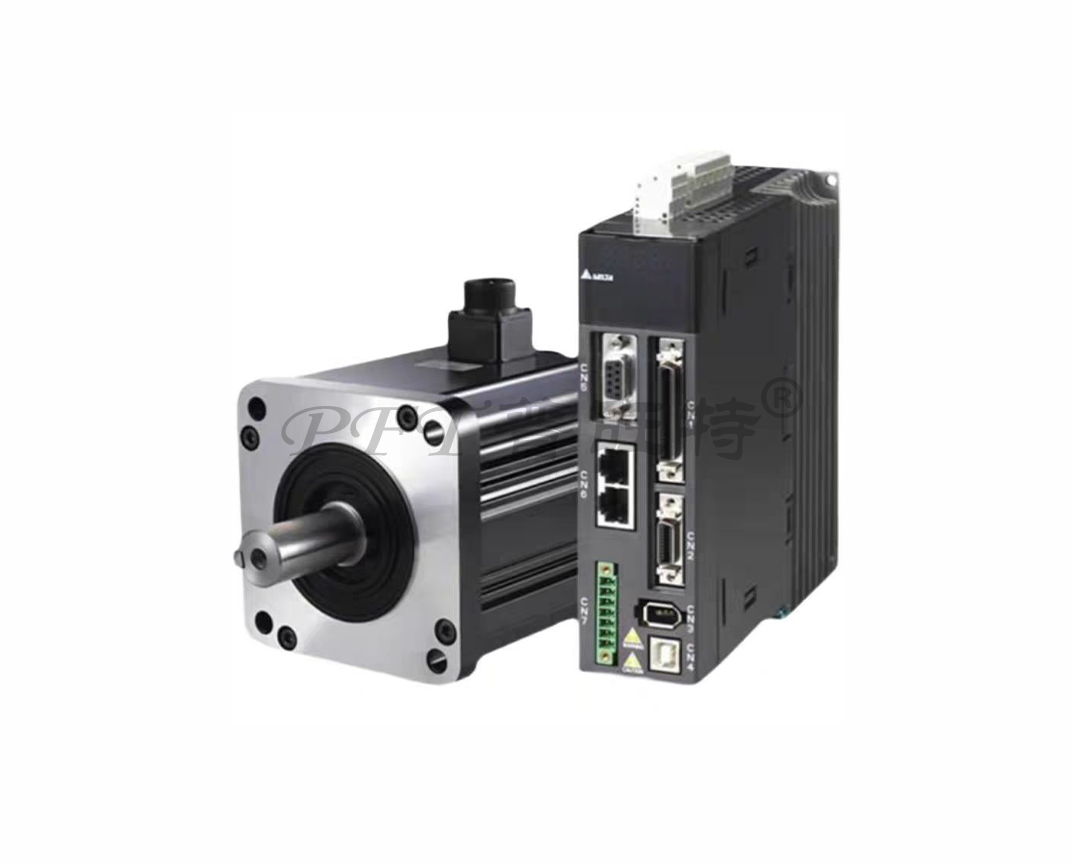

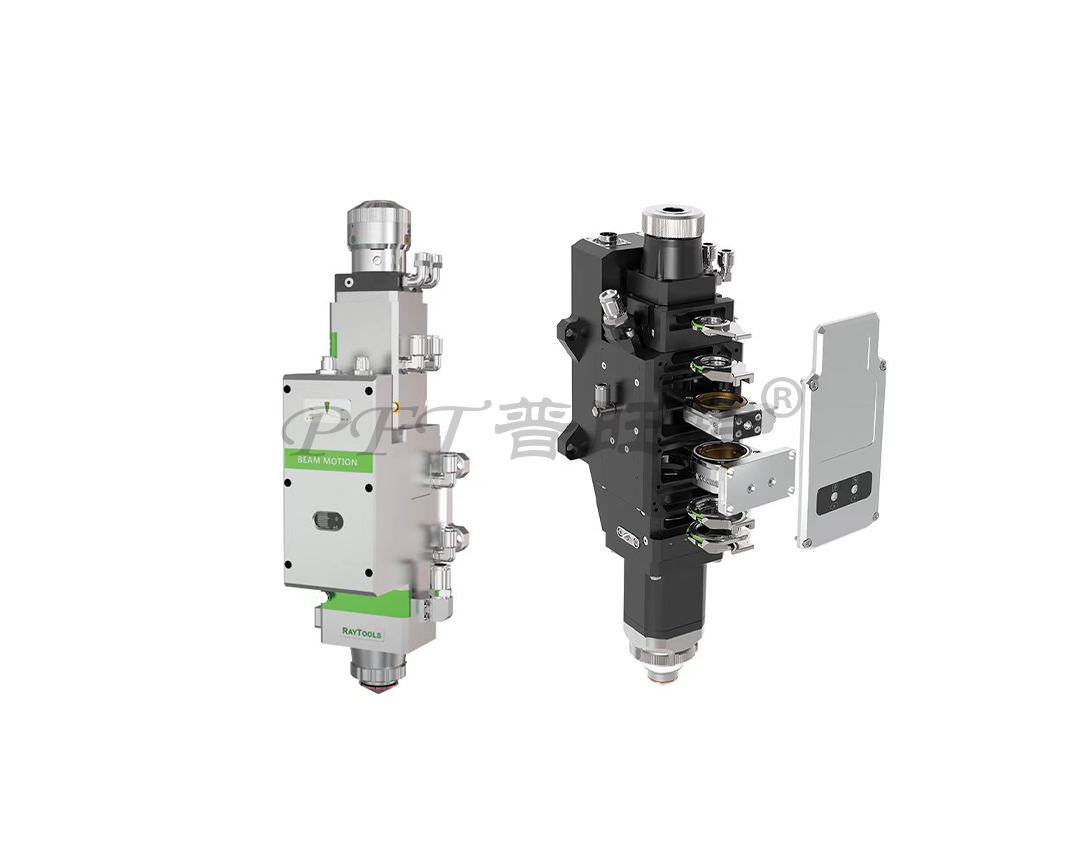

Core Components
Key Features
⚡
01Efficient Laser Output
Supports 1.5KW / 3KW / 6KW / 12KW / 20KW power options for different material thicknesses and production needs.
⚙️
02Stable Working Area
Typical working area: 3000 x 1500 mm, suitable for industrial batch production.
Technical Data
Technical Specifications
ParameterValue
ParameterValue
ParameterValue
型号
PFT-3015Y / PFT-6025Y
Sheet Working Area
3000×1500 / 4000×1500 / 4000×2000 / 6000×1500 / 6000×2000 / 6000×2500 mm
Core Process Parameters
Processing Capability Chart
| Material Type | 1500W | 3000W | 6000W | 12000W |
|---|---|---|---|---|
| Carbon Steel (O₂) | 14 mm @ 0.6 m/min | 20 mm @ 0.6 m/min | 25 mm @ 0.8 m/min | 40 mm @ 1.0 m/min |
| Stainless Steel (N₂) | 5 mm @ 0.8 m/min | 10 mm @ 0.8 m/min | 16 mm @ 1.0 m/min | 40 mm @ 1.2 m/min |
| Aluminum (N₂) | 4 mm @ 0.8 m/min | 8 mm @ 1.0 m/min | 16 mm @ 1.0 m/min | 30 mm @ 1.2 m/min |
| Brass (N₂) |
Industry Use Cases
Applications
01Automotive Manufacturing02Aerospace03Electrical Equipment04Metal Fabrication
Global Logistics
Packaging & Transportation
Every machine is reinforced with industrial-grade wooden crating, moisture-proof film wrapping, and shock-absorbing foam. We partner with experienced freight forwarders for FCL and LCL sea freight, air freight, and door-to-door delivery worldwide.
- 1Wooden export crate with steel reinforcement
- 2Moisture-proof & shock-absorbing inner packaging
- 3Sea / Air / Express — flexible shipping modes
- 4Shipped to 60+ countries, full insurance covered
60+ Countries
FAQ
Product FAQ
Q01What applications is Plate and Tube Fiber Laser Cutting Machines suitable for?▼
A01
Plate and Tube Fiber Laser Cutting Machines is suitable for Automotive Manufacturing, Aerospace, Electrical Equipment, Metal Fabrication. PFT can recommend a configuration based on material, thickness, and production capacity.
Q02Can this product be customized?▼
A02
Yes. PFT can customize working area, power, automation configuration, fixtures, and delivery requirements.
